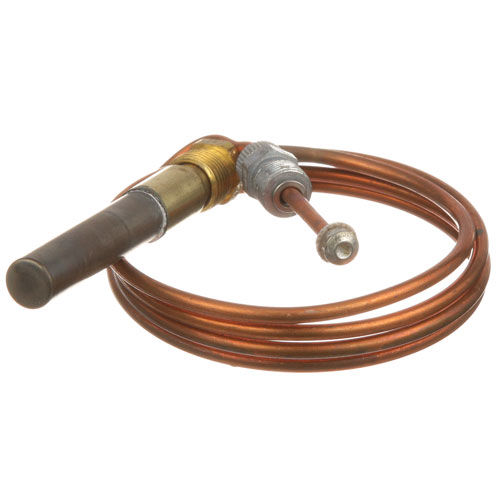

Frymaster FM8100162 Fryer 36" Coaxial Thermopile 250-750 MV

SKU: FM8100162 1-FM8100162 Brand:
Frymaster
Availability:
In Stock
(1)
$41.68 Price reduced from $52.72
Save $11.04
Have a Question? +1 (866) 863-0907

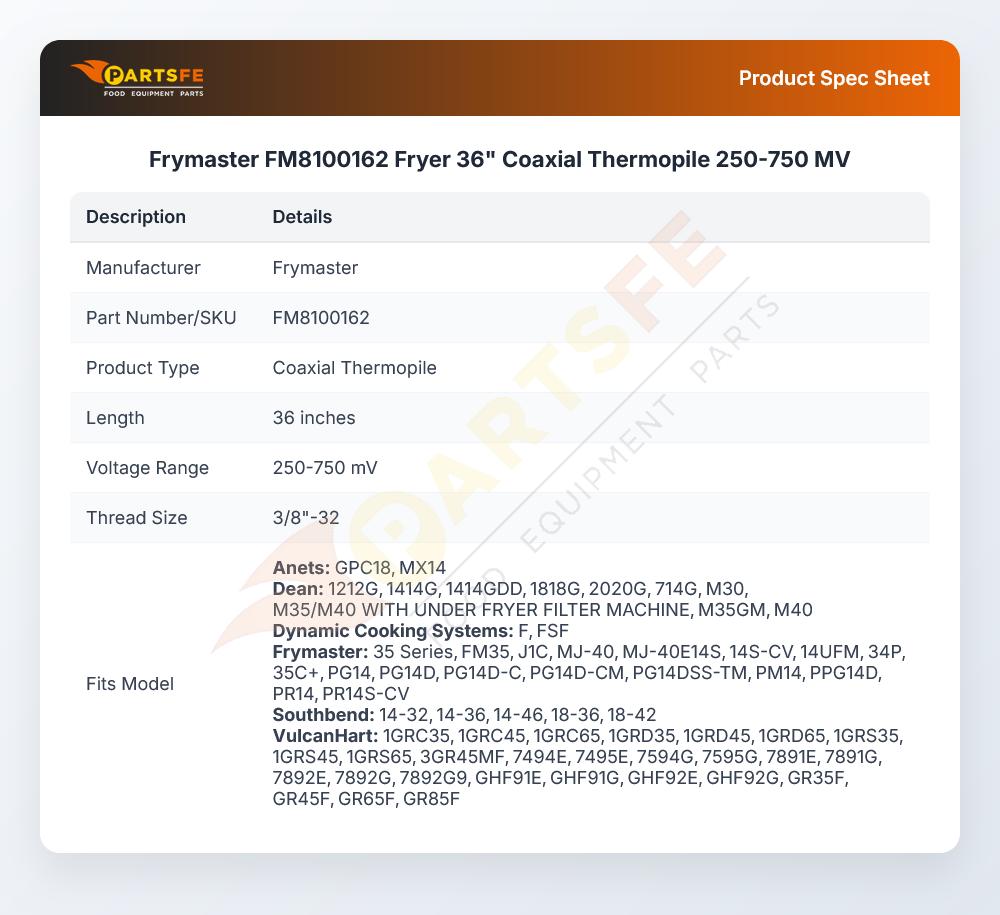

Specifications:

  • 36" Coaxial Thermopile, 250-750 Mv
  • Coaxial Thermopile Threads = 3/8"-32.
  • Robertshaw 1951-53F
  • Vulcan 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65, 1Grs35,
  • 1Grs45, 1Grs65, Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F
  • Wolf Fryer Wtf-42, Ss-Wtf-42
  • Grill Tmm (36, 37, 38)

Description

The Frymaster FM8100162 Coaxial Thermopile is a long-lasting part meant for fryers that uses heat to generate electrical energy to the fryer’s gas valve. This 36-inch thermopile has a voltage output of 250-750 millivolts, which means that its performance is always accurate. It invariably improves its efficiency in heat transfer processes that were previously wasting a lot of energy in fryers. Designed for accurate temperature regulation, it guarantees the best results in the conditions of a high-stress environment of a professional kitchen.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.63 in
  • Height: 1.13 in
  • Width: 2.75 in

ANETS:

P8905-38

DEAN:

1897 810-0162 8100162

DYNAMIC COOKING SYSTEMS:

13257 DCS13257

FRYMASTER:

1897 810-0162 8100162 FM1897 FM810-0162

GARLAND:

1093418 1292900 1577001 1897 F810-0162 F810-0617 GL1093418 GL1292900 GL1577001 GLF810-0162

HOBART:

00-348358-00001 00-410839-00001 00-711335 110839-1 11335 348358-1 410839-00001 410839-1 711335

KEATING:

002567 2567 H00340H KEA2567 KEAH00340H

PITCO:

P5047541 P5047542 P8905-38 PTP5047541 PTP5047542

SOUTHBEND:

1054300 1056400 SOU1054300 SOU1056400

U-LINE:

1951-536 1951-53F

VULCAN HART:

00-410839-00001 00-711335 110839-1 11335 410839-00001 410839-1 711335 VH110839-1 VH410839-1

Step1: Turn off gas and electrical supply and allow fryer to cool.

Step2: Remove front panel and access old thermopile assembly.

Step3: Disconnect leads carefully noting wiring orientation.

Step4: Install new coaxial thermopile and secure in bracket.

Step5: Reconnect wiring and restore panels.

Step6: Restore power and test ignition.

Step7: Ensure no gas leaks and wear protective gloves.

Step8: Check ignition cycle for proper flame stability and repeat test if needed.

  • What maintenance is required for the Frymaster FM8100162 Coaxial Thermopile?

    Inspect the Fryer thermopile for soot buildup and clean it regularly to maintain proper flame sensing. Ensure secure electrical connections and alignment with the pilot flame. Preventive maintenance improves ignition reliability and heating consistency. Always shut off gas and power before servicing to avoid safety hazards.

  • What are common issues with the Frymaster FM8100162 Coaxial Thermopile?

    • Weak or no voltage output causing ignition failure.
    • Pilot flame not properly detected leading to shutdown.
    • Loose or corroded wiring connections affecting signal stability.
    • Dirty or misaligned thermopile reducing heating response accuracy.
