Wells 2E34594 Infinite Switch 15A 120V

SKU: 2E34594 1-2E34594 Brand:
Wells
Availability:
In Stock
(0)
$29.92 Price reduced from $38.86
Save $8.94
Have a Question? +1 (866) 863-0907

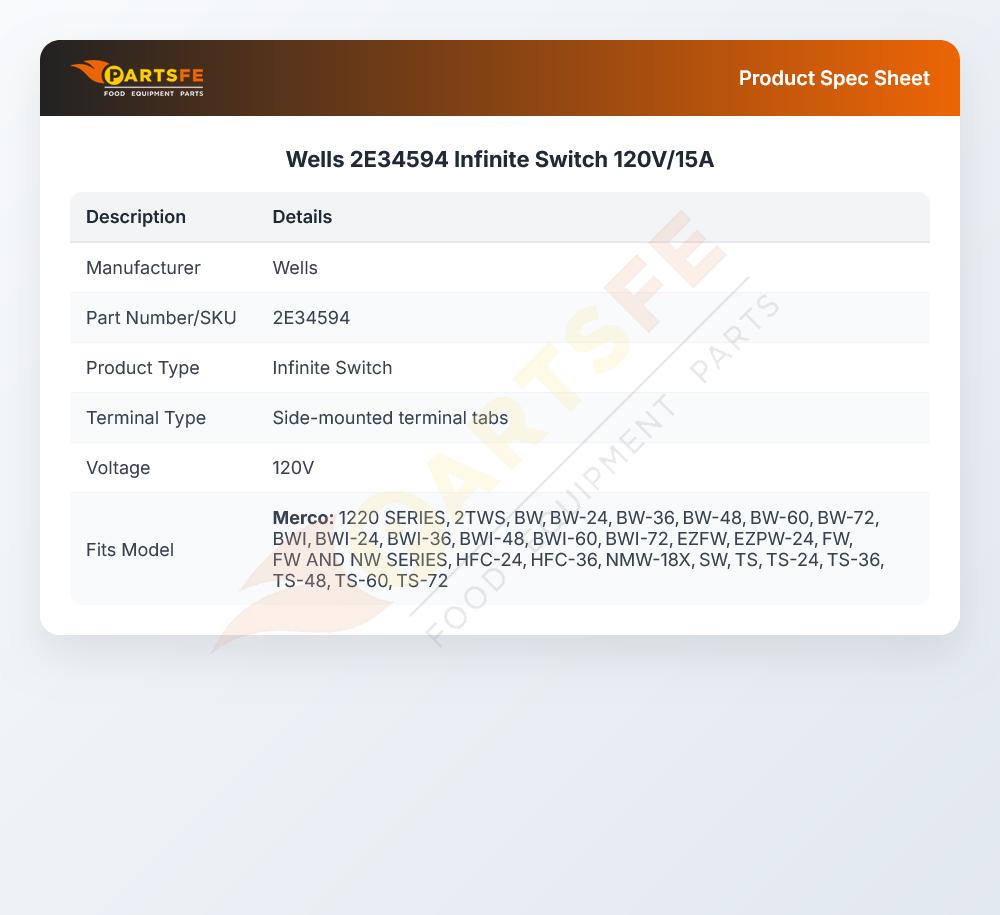

Specifications:

  • 120V/15A )( Infinite ), Terminal( 5~
  • 1/4" Tab~
  • L1,L2(Line),P(Pilot),H1,H2(Load) )~
  • Contacts( N.O. )'
  • Style( Rotary )~
  • Markings( 1-10 ) Shaft( 3/16" Od~
  • 3/4" Long~
  • .187" Flat Up ) 4 Screw Mt.
  • Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
  • Bloonfield Model?
  • Delfield
  • Warmer Series: 8300. Taco Bell & Kfc Units.
  • Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
  • Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
  • Hotplate H(65,70,115)

Description

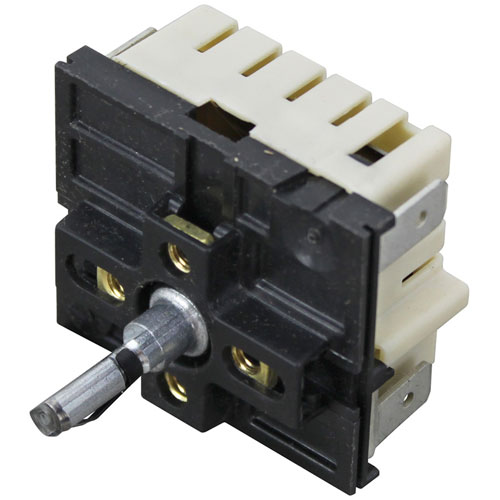

The Wells 2E34594 Infinite Switch 15A 120V is a countertop system that controls the amount of heat generated by a countertop appliance by varying the electrical resistance as the knob is turned, allowing the heating element to be fed with more or less current. It works by changing the number of contacts within the device and resistive paths to change the quantity of power delivered to the element to provide a continuous array of settings rather than discrete ones. This is an infinite switch that is fitted on the rear side of the control panel.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.25 in
  • Height: 1.75 in
  • Width: 1.75 in

BLOOMFIELD:

-2E-30570 2E-30570 6710-109 BLM6710-109

MERCO:

50377 50377SP MER50377 MER50377SP

STAR MFG:

-2E-30520 -2E-30570 -50570 -WS-50570 2E-30520 2E-30570 2E-Z21556 2E30570 30570 50570 WS-50570

STERO:

STA2E-Z21556 WEL2E-30570 WEL2E-Z21556 WEL2E30570

U-LINE:

5502-309 INF120-975

VOLLRATH:

6710-109 VOL6710-109

Step1: Turn off power at the main breaker to avoid electrical shock.

Step2: Remove the control panel cover to access the old switch.

Step3: Label and disconnect wires from the existing switch.

Step4: Mount the new switch securely in place.

Step5: Reconnect wires to matching terminals as labeled.

Step6: Reassemble the panel and restore power.

Step7: Test the switch for proper operation.

  • What maintenance is required for the Wells 2E34594 Infinite Switch?

    Inspect the switch terminals regularly to ensure tight, corrosion-free connections. Keep the control area clean from grease buildup that may affect rotation or contact performance. Verify smooth heat adjustment and consistent power modulation during repeated use without intermittent output.

  • What are common issues with the Wells 2E34594 Infinite Switch?

    • Heat control becoming inconsistent.
    • Switch failing to regulate power.
    • Intermittent electrical contact.
    • Knob adjustment becoming stiff.
    • Output fluctuating during use.
