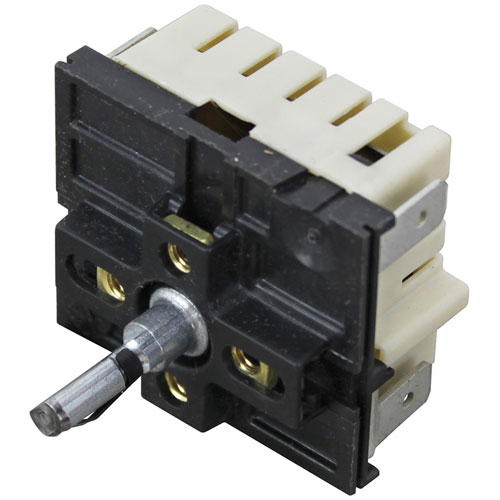

Wells 50570 Infinite Switch 120V/15A

SKU: 50570 1-50570 Brand:
Wells
Availability:
In Stock
(0)
$29.92 Price reduced from $38.86
Save $8.94
Have a Question? +1 (866) 863-0907

Specifications:

  • 120V/15A )( Infinite ), Terminal( 5~
  • 1/4" Tab~
  • L1,L2(Line),P(Pilot),H1,H2(Load) )~
  • Contacts( N.O. )'
  • Style( Rotary )~
  • Markings( 1-10 ) Shaft( 3/16" Od~
  • 3/4" Long~
  • .187" Flat Up ) 4 Screw Mt.
  • Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
  • Bloonfield Model?
  • Delfield
  • Warmer Series: 8300. Taco Bell & Kfc Units.
  • Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
  • Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
  • Hotplate H(65,70,115)

Description

The Wells 50570 Infinite Switch 120V 15A regulates the amount of heat produced by adjusting the amount of electrical current flowing to the warming element in a continuous range of settings, not in discrete steps. Its rotary action is attached to the control shaft in such a way that rotation of the knob changes the resistance and changes the power level of the component. This is an unlimited button that is installed in the operator interface of compatible equipment, and the terminals can be accessed on the back of the control panel.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.25 in
  • Height: 1.75 in
  • Width: 1.75 in

BLOOMFIELD:

-2E-30570 2E-30570 6710-109 BLM6710-109

MERCO:

50377 50377SP MER50377 MER50377SP

STAR MFG:

-2E-30520 -2E-30570 -50570 -WS-50570 2E-30520 2E-30570 2E-Z21556 2E30570 2E34594 30570 WS-50570

STERO:

STA2E-Z21556 WEL2E-30570 WEL2E-Z21556 WEL2E30570

U-LINE:

5502-309 INF120-975

VOLLRATH:

6710-109 VOL6710-109

Step1: Unplug the appliance and ensure it is fully cool before starting.

Step2: Remove the old infinite switch from the control panel.

Step3: Disconnect wiring and note their positions for correct reinstallation.

Step4: Mount the new infinite switch and reconnect wires exactly.

Step5: Test the switch by rotating through all settings to verify proper operation.

  • What maintenance is required for the Wells 50570 Infinite Switch?

    Check the switch for proper electrical connections and signs of wear. Clean contacts to ensure smooth operation and prevent sticking. Inspect for overheating and change any damaged components to maintain accurate control of temperature settings.

  • What are the common issues with the Wells 50570 Infinite Switch?

    • Erratic temperature control or inconsistent heat output.
    • Switch sticking or hard to turn.
    • Burner fails to respond to adjustments.
    • Electrical arcing or sparking.
    • Intermittent operation caused by worn contacts.
