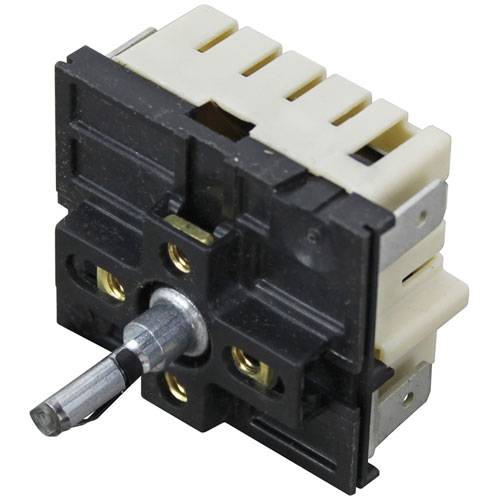

Bloomfield 2E-30570 Infinite Switch 15A 120V

SKU: 2E-30570 1-2E-30570 Brand:
Bloomfield
Availability:
In Stock
(0)
$29.92 Price reduced from $38.86
Save $8.94
Have a Question? +1 (866) 863-0907

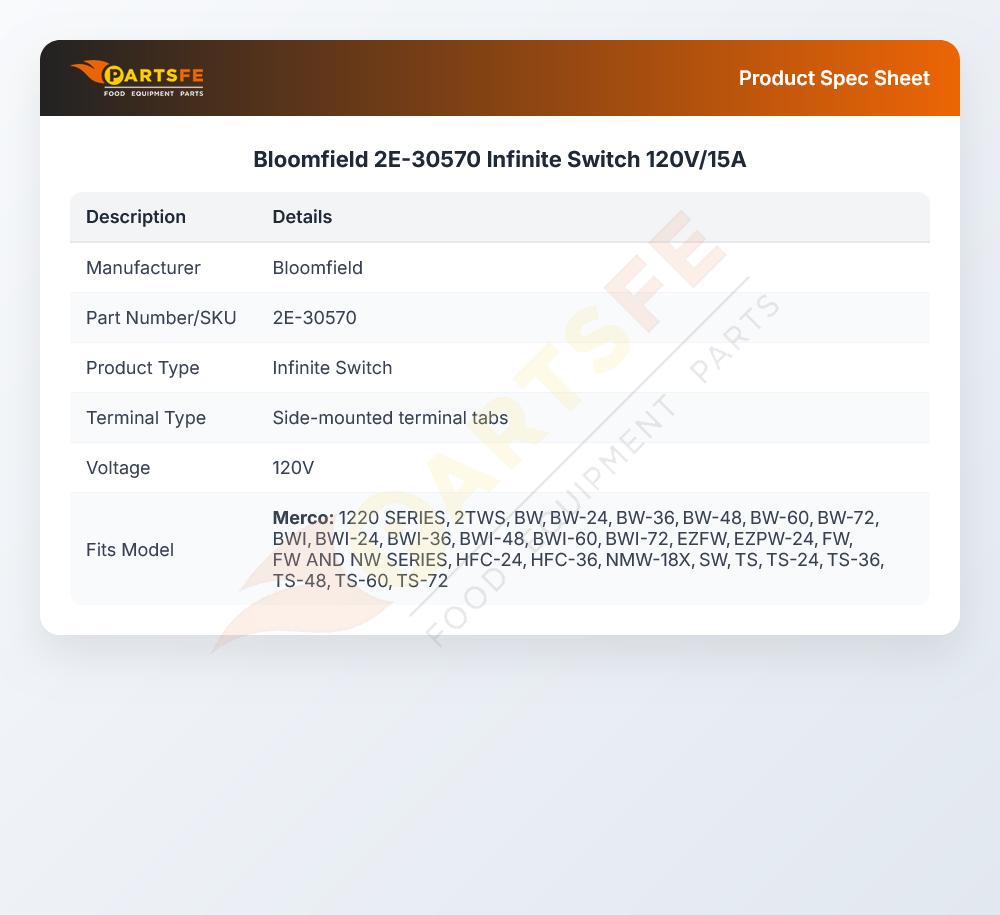

Specifications:

  • 120V/15A )( Infinite ), Terminal( 5~
  • 1/4" Tab~
  • L1,L2(Line),P(Pilot),H1,H2(Load) )~
  • Contacts( N.O. )'
  • Style( Rotary )~
  • Markings( 1-10 ) Shaft( 3/16" Od~
  • 3/4" Long~
  • .187" Flat Up ) 4 Screw Mt.
  • Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
  • Bloonfield Model?
  • Delfield
  • Warmer Series: 8300. Taco Bell & Kfc Units.
  • Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
  • Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
  • Hotplate H(65,70,115)

Description

The Bloomfield 2E-30570 Infinite Switch 15A 120V is a manual control operator that operates electrical power to a heating element by changing resistance as the knob is turned, and so allows the amount of heat output to be continuously adjusted. Adjust the temperature settings in a smooth manner as opposed to discrete steps, and it is aligned with the knob that can be accessed. The switch is connected to the wiring harness of the appliance and is connected to the heating circuit to regulate the amount of energy sent to the element.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.25 in
  • Height: 1.75 in
  • Width: 1.75 in

BLOOMFIELD:

-2E-30570 6710-109 BLM6710-109

MERCO:

50377 50377SP MER50377 MER50377SP

STAR MFG:

-2E-30520 -2E-30570 -50570 -WS-50570 2E-30520 2E-Z21556 2E30570 2E34594 30570 50570 WS-50570

STERO:

STA2E-Z21556 WEL2E-30570 WEL2E-Z21556 WEL2E30570

U-LINE:

5502-309 INF120-975

VOLLRATH:

6710-109 VOL6710-109

Step1: Lock out electrical power at breaker, check no voltage present with a tester before beginning work.

Step2: Remove control knob and front panel to access the switch assembly inside the unit.

Step3: Disconnect wiring from terminals, labeling or noting positions for correct reinstallation later.

Step4: Remove mounting hardware and extract the faulty switch from the control bracket assembly.

Step5: Install new switch, secure mounting, and reconnect wires to matching terminals.

Step6: Reassemble panel, restore power, and test all heat settings for proper operation.

  • What maintenance is required for the Bloomfield 2E-30570 Infinite Switch?

    Inspect the switch regularly for heat damage, loose terminals, or electrical damage to ensure better operation. Keep the control panel clean and dry to prevent moisture intrusion. Tighten wiring connections periodically and replace the switch if flickering or inconsistent heating control is observed.

  • What are common issues with the Bloomfield 2E-30570 Infinite Switch?

    • Loss of temperature control or inconsistent heat output.
    • Electrical arcing or burning at switch terminals.
    • Overheating leading to premature switch failure.
    • Intermittent operation or complete loss of power control.
    • Loose wiring connections causing unstable performance.
