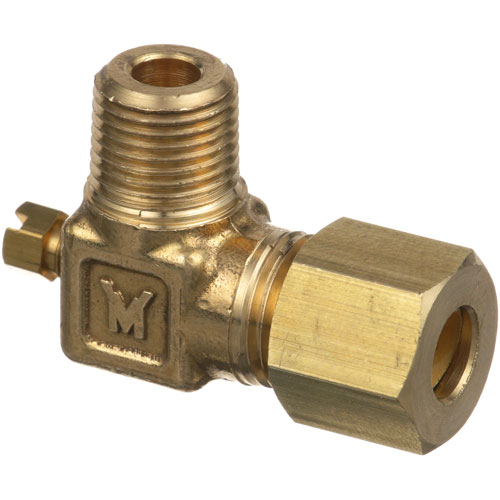

Hobart 404193-00001 Pilot Valve 1/8" MPT X 1/4" CCT

SKU: 404193-00001 1-404193-00001 Brand:
Hobart
Availability:
Out of Stock
(0)
$15.64
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Adjustment Valve[ 1/8" Mpt X 1/4" Cct ]
  • Angle - 90 Degree.
  • American Permanent Ware Broiler Gcb, Gcrb
  • Griddle Ggm, Ggt
  • Garland Most Models
  • Jade Grill Series: Jggt, Jgm, Jgt.
  • Hotplate Series: Jhp, Jhpe.
  • Range Series: Jsp, Jsr, Jtrh.
  • Star Griddle
  • Vulcan Broiler 100L-77R, Salamanders.
  • Oven Series: 7000, 7800, Gh, Ghm, Ghx.

Description

The Hobart 404193-00001 Pilot Valve 1/8" MPT X 1/4" CCT regulates the flow of gas to pilot assembly by closing or opening the internal passage as required to allow ignition. When gas passes it passes through the pilot burner to safely ignite the main burner. This valve is fitted on the gas line that goes via pilot and is set in such a position that it controls the amount of fuel flow. The correct installation pilot assembly ensures the safe and controlled operation of the pilot assembly.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.5 in
  • Height: 1 in
  • Width: 0.5 in

APW WYOTT:

2068001 AS-2068001

GARLAND:

1086596 G03674-1 G03674-3 GLG03674-1

HOBART:

00-404193-00001 104193-1 1355 404193-1 801355

JADE RANGE:

44-128 440-128-000 440128000 4412800000 4412800200

MONTAGUE:

01000-6 1000-6

STAR MFG:

2V-6671 2V6671 6671

STERO:

STA2V-6671 STA2V6671 STA6671

VULCAN HART:

00-404193-00001 104193-1 1355 404193-1 801355 VH104193-1 VH1355 VH404193-1 VH801355

Step1: Turn off gas supply and electrical power; allow system to cool completely.

Step2: Remove old pilot valve, noting orientation and fittings.

Step3: Apply thread sealant to connections.

Step4: Install new valve, tighten securely without over-torquing.

Step5: Restore gas, check for leaks using soap solution test pilot operation.

  • What maintenance is required for the Hobart 404193-00001 Pilot Valve?

    Inspect the valve for leaks, debris buildup, and smooth actuation. Clean internal passages to prevent clogging and ensure proper flow control. Check seals and connections for wear. Regular servicing ensures accurate operation and prevents unexpected system failures.

  • What are common issues with the Hobart 404193-00001 Pilot Valve?

    • Valve sticking or failing to actuate.
    • Internal leaks reducing system efficiency.
    • Blocked passages restricting flow.
    • Worn seals causing pressure loss.
