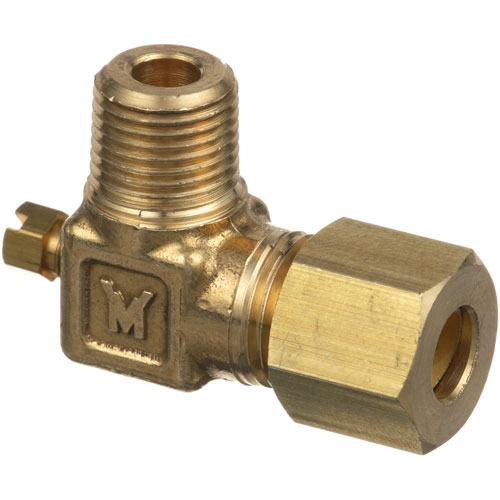

Hobart 404193-1 Range Pilot Valve 1/8" MPT X 1/4" CCT

SKU: 404193-1 1-404193-1 Brand:
Hobart
Availability:
Out of Stock
(0)
$15.64
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Adjustment Valve[ 1/8" Mpt X 1/4" Cct ]
  • Angle - 90 Degree.
  • American Permanent Ware Broiler Gcb, Gcrb
  • Griddle Ggm, Ggt
  • Garland Most Models
  • Jade Grill Series: Jggt, Jgm, Jgt.
  • Hotplate Series: Jhp, Jhpe.
  • Range Series: Jsp, Jsr, Jtrh.
  • Star Griddle
  • Vulcan Broiler 100L-77R, Salamanders.
  • Oven Series: 7000, 7800, Gh, Ghm, Ghx.

Description

The Hobart 404193-1 Range Pilot Valve 1/8" MPT X 1/4" CCT is an adjustable pilot gas valve that meters a regulated flow of gas through a male thread inlet pipe and compression outlet during idle and ignition. It is installed in-line at the pilot connection point and links the gas supply and pilot tube to provide an adequate supply of pilot flame fuel. It is applied in ranges, broilers, and other such appliances in regular kitchen settings to aid in stable ignition.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.5 in
  • Height: 1 in
  • Width: 0.5 in

APW WYOTT:

2068001 AS-2068001

GARLAND:

1086596 G03674-1 G03674-3 GLG03674-1

HOBART:

00-404193-00001 104193-1 1355 404193-00001 801355

JADE RANGE:

44-128 440-128-000 440128000 4412800000 4412800200

MONTAGUE:

01000-6 1000-6

STAR MFG:

2V-6671 2V6671 6671

STERO:

STA2V-6671 STA2V6671 STA6671

VULCAN HART:

00-404193-00001 104193-1 1355 404193-00001 801355 VH104193-1 VH1355 VH404193-1 VH801355

Step1: Turn off gas/power and allow system to cool; relieve pressure.

Step2: Remove old pilot valve and clean connections.

Step3: Apply approved thread sealant and install new valve securely.

Step4: Tighten fittings to specification, avoiding over-torque.

Step5: Restore supply, check for leaks with soap solution, inspect seals, and test ignition safely.

  • What maintenance is required for the Hobart 404193-1 Pilot Valve?

    Check the pilot valve for smooth operation and clean any debris from internal components. Inspect seals for wear and ensure tight connections. Regular maintenance ensures accurate flow control and better performance in continuous operation without unexpected failures.

  • What are the common issues with the Hobart 404193-1 Pilot Valve?

    • Valve is failing to open or close properly.
    • Leakage due to worn internal seals.
    • Restricted flow from debris buildup.
    • Inconsistent pilot pressure control.
