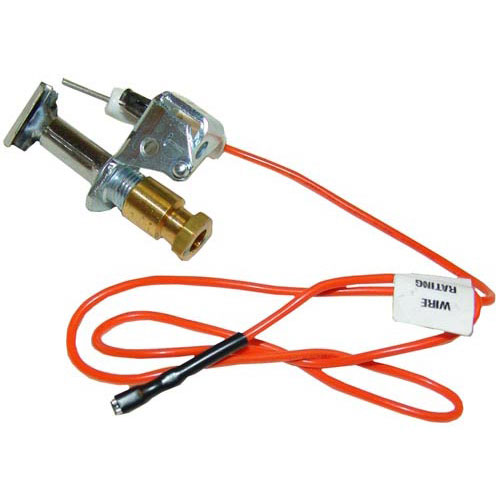

Jade Range 460-117-000 Oven Natural Gas Pilot Assembly W/ Igniter & Orifice 1/4" CCT Long Nut
Specifications:

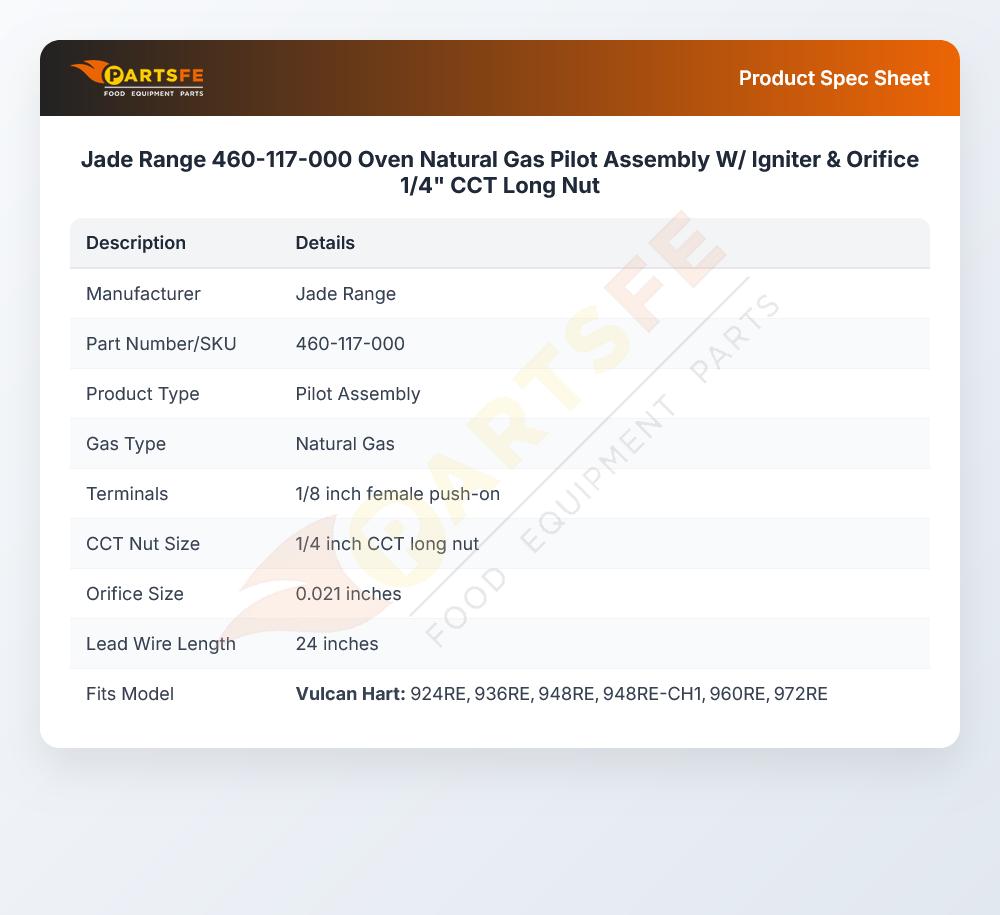

- Nat Pilot Assembly W/ Igniter
- Has 1/4" Cct Long Nut,Orifice .021", 24" Lead Wire With
- 1/8" Female Push-On Terminals,
- Lp Orifice # 26-1554
- Nat Orifice # 26-1555
- Use Spark Ignition Module "Sm2" # 44-1009
- Jade Convection Oven Where Applicable
- Toastmaster Model?
- Vulcan Griddle Series 936Rg
- Wolf Griddle Sae/Sce/Irg
Description
Dimensions:
- Weight: 0.18 lbs
- Length: 3 in
- Height: 2.5 in
- Width: 1.5 in
Step1: Turn off gas oven supply and disconnect electrical power before servicing.
Step2: Remove burner access panel to reach old pilot assembly.
Step3: Disconnect gas line, igniter leads, and thermocouple wiring carefully.
Step4: Remove old pilot assembly and clean mounting area.
Step5: Install new assembly, ensuring long nut is securely fitted.
Step6: Position igniter and orifice correctly in burner flame path.
Step7: Reconnect gas and wiring, then restore supply and test for proper ignition and stable pilot flame.
-
What maintenance is required for the Jade Range 460-117-000 Oven Natural Gas Pilot Assembly W/ Igniter & Orifice CCT Long Nut?
Clean the pilot orifice and igniter regularly to prevent carbon buildup and weak ignition. Inspect gas connections for leaks and tighten fittings as needed. Proper maintenance ensures stable flame performance and safe natural gas operation.
-
What are common issues with the Jade Range 460-117-000 Oven Natural Gas Pilot Assembly W/ Igniter & Orifice CCT Long Nut?
- Clogged pilot orifice causing weak or no flame.
- Igniter failure leading to ignition issues.
- Gas leakage at fittings.
- Uneven flame or inconsistent heating.
- Orifice blockage affecting fuel flow.
