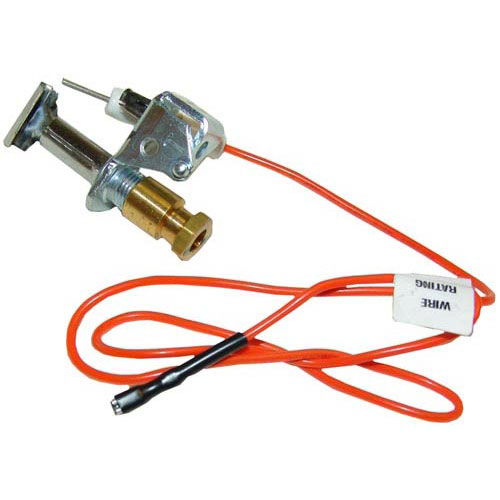

Vulcan Hart VH713930 Oven Natural Gas Pilot Assembly W/ Igniter & Orifice 1/4" CCT Long Nut

SKU: VH713930 1-VH713930 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$88.30 Price reduced from $136.05
Save $47.75
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Pilot Assembly W/ Igniter
  • Has 1/4" Cct Long Nut,Orifice .021", 24" Lead Wire With
  • 1/8" Female Push-On Terminals,
  • Lp Orifice # 26-1554
  • Nat Orifice # 26-1555
  • Use Spark Ignition Module "Sm2" # 44-1009
  • Jade Convection Oven Where Applicable
  • Toastmaster Model?
  • Vulcan Griddle Series 936Rg
  • Wolf Griddle Sae/Sce/Irg

Description

The Vulcan Hart VH713930 Oven Natural Gas Pilot Assembly with Igniter and Orifice 1/4 CCT Long Nut is an essential part that provide a pilot ignition and safety. This assembly consists of a pilot light, igniter, and an orifice that is aimed at proper flow of gas and a fast ignition. Suitable for busy business use in the food industry, that saves gas and maintains the set temperature for preparing meals. The simple installation and the high resistance of the material guarantee a long life cycle which enhances the dependability of the oven while at the same time cutting the maintenance expenses for the customers.

Dimensions:

  • Weight: 0.18 lbs
  • Length: 3 in
  • Height: 2.5 in
  • Width: 1.5 in

HOBART:

00-713930 13930 713930

JADE RANGE:

460-117-000 4611700000

MIDDLEBY MARSHALL:

1952209

STAR MFG:

1952209

VULCAN HART:

00-713930 13930 713930 VH00-713930

Step1: Turn off gas and electricity, shut gas valve, and allow oven to cool.

Step2: Remove access panel and disconnect old pilot assembly and igniter wiring.

Step3: Install new pilot assembly, securing orifice and long nut firmly to burner line and bracket.

Step4: Reconnect igniter leads and ensure proper alignment with burner, verify connections.

Step5: Turn on gas, check for leaks with soapy solution, and test ignition, restore power.

  • What maintenance is required for the Vulcan Hart VH713930 Pilot Assembly?

    Clean the pilot assembly to remove carbon buildup that can restrict flame flow. Inspect the pilot orifice for clogging and ensure proper alignment. Check gas connections for leaks and test ignition for stable and consistent oven operation.

  • What are common issues with the Vulcan Hart VH713930 Pilot Assembly?

    • Weak or inconsistent pilot flame.
    • Clogged pilot orifice.
    • Gas leakage at connections.
    • Difficulty igniting burner system.
    • Pilot flame going out frequently.
