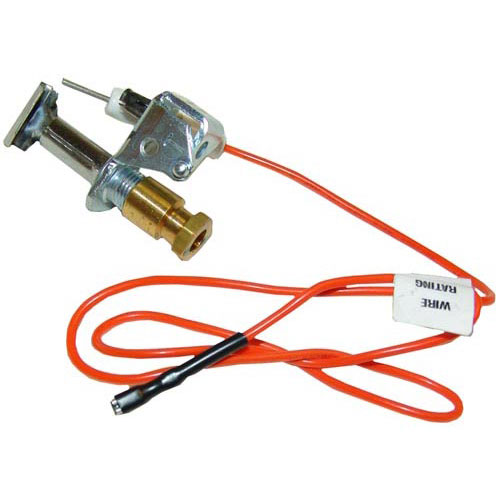

Vulcan Hart 00-713930 Pilot And Spark Ignitor W/Orange Wire NAT 1/4" CCT Long Nut

SKU: 00-713930 1-00-713930 Brand:
Vulcan Hart
Availability:
In Stock
(1)
$88.30 Price reduced from $136.05
Save $47.75
Have a Question? +1 (866) 863-0907

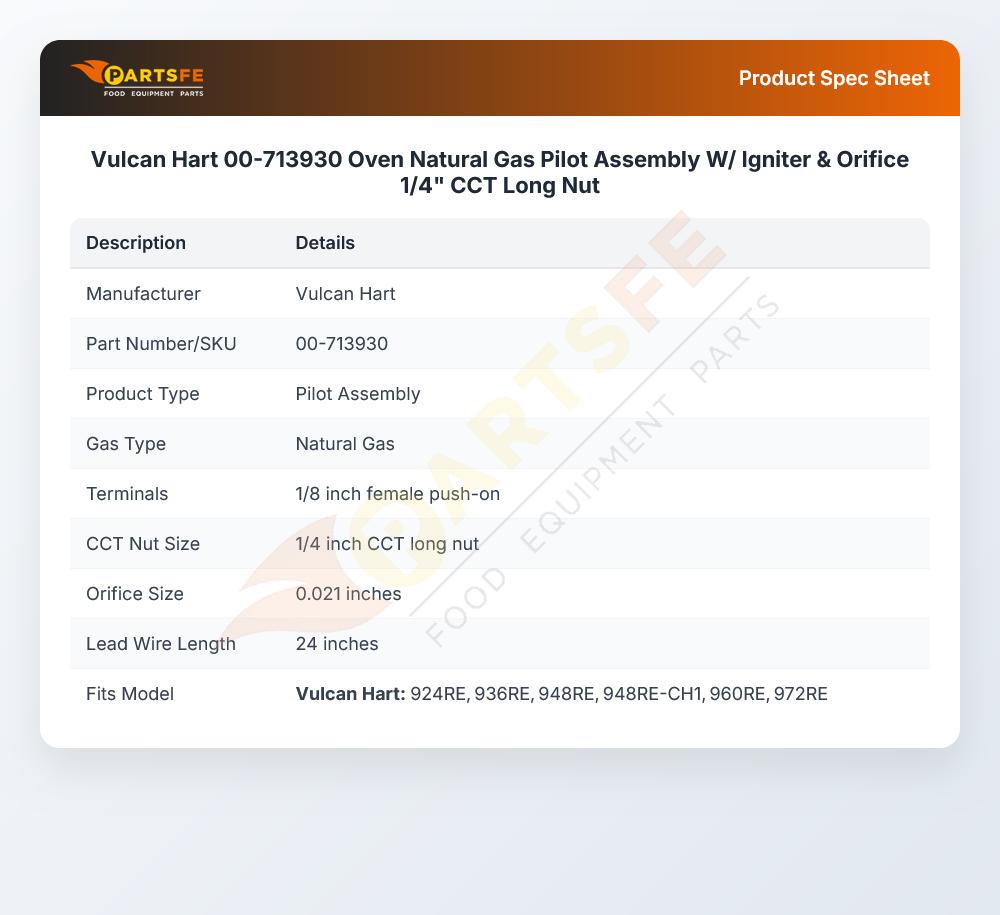

Specifications:

  • Nat Pilot Assembly W/ Igniter
  • Has 1/4" Cct Long Nut,Orifice .021", 24" Lead Wire With
  • 1/8" Female Push-On Terminals,
  • Lp Orifice # 26-1554
  • Nat Orifice # 26-1555
  • Use Spark Ignition Module "Sm2" # 44-1009
  • Jade Convection Oven Where Applicable
  • Toastmaster Model?
  • Vulcan Griddle Series 936Rg
  • Wolf Griddle Sae/Sce/Irg

Description

The Vulcan Hart 00-713930 Pilot and Spark Ignitor with orange wire works by creating a spark of ignition that ignites the pilot flame in natural gas equipment, making the burner operate correctly. It operates by passing an electrical current through its built-in ignitor system that burns the gas as it enters the pilot assembly. It is a component that is installed in commercial cooking system like ovens, ranges, or griddles and is used as a major component of the ignition system. It has a 1/4" CCT connection with a long nut to fit perfectly with the gas line and control system to trigger consistent pilot lighting and maintain the flame when operating the equipment.

Dimensions:

  • Weight: 0.18 lbs
  • Length: 3 in
  • Height: 2.5 in
  • Width: 1.5 in

HOBART:

13930 713930

JADE RANGE:

460-117-000 4611700000

MIDDLEBY MARSHALL:

1952209

STAR MFG:

1952209

VULCAN HART:

13930 713930 VH00-713930 VH713930

Step1: Turn off gas and electrical power, allow appliance to cool completely to avoid shock or burns.

Step2: Remove access panel and disconnect old ignitor wires carefully noting connections.

Step3: Install new ignitor into mounting bracket, secure long nut firmly but do not overtighten.

Step4: Reconnect orange wire to correct terminal ensuring tight, insulated connection and proper alignment.

Step5: Restore power and gas, test ignition cycle while observing flame and spark operation.

  • What maintenance is required for the Vulcan Hart 00-713930 Pilot And Spark Ignitor With Wire?

    Keep ignitor clean and free of grease buildup. Inspect wire for heat damage and secure connections. Ensure proper electrode gap for accurate spark ignition. Replace worn components to maintain safe burner operation.

  • What are common issues with the Vulcan Hart 00-713930 Pilot And Spark Ignitor With Wire?

    • Weak or intermittent spark ignition due to electrode wear.
    • Frayed or heat-damaged orange wire causing signal loss.
    • Carbon buildup affecting ignition performance.
    • Misalignment leading to inconsistent burner lighting.
    • Loose connector causing intermittent ignition failure.
