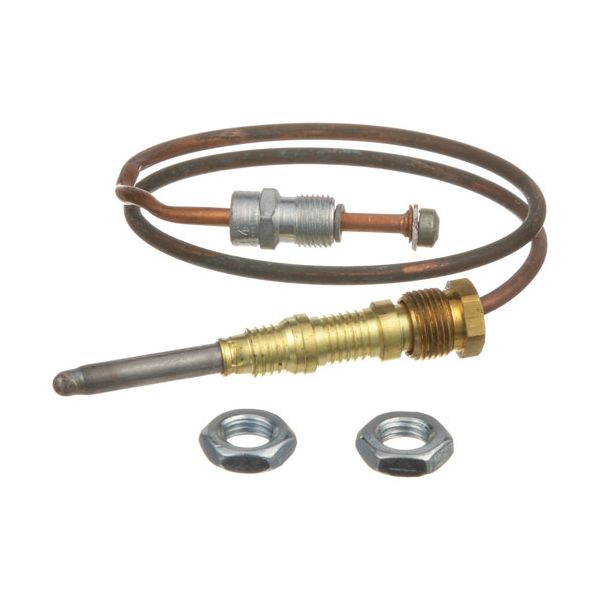

Jade Range 4612600000 Convection Oven Thermocouple 18" Long 20-30mV 1900 Series

Be the first to review this product
Special Price $45.61 Regular Price $72.41
In stock
SKU
4612600000
Add to Wish List
Fryer Parts, Fryer Thermocouples,
Manufacturer:
The Jade Range 4612600000 Convection Oven Thermocouple 18″ Long 20-30 mV 1900 Series produces a millivolt signal based on the presence of heat in the sensing tip, which can be used by the control system in the oven to detect the presence of flames. It has a metal probe that extends to 18 inches to reach the combustion space and generates 2030 mV when hot. This thermocouple is mounted in the combustion chamber of any compatible convection oven, and it is a component of the flame detection system and safety.

Dimensions

  • Length: 18 In
  • Width: 3 In
  • Height: 1 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-4612600000-1900-series-h-d-thermocouple-18-long-20-30-mv-11329-2.jpg

Product Notes

  • 1900 Series Heavy Duty Thermocouple 18" Long. 20-30 Mv
  • Coaxial Thermocouple Threads = 11/32"-32.
  • Cecilware
  • Fryer Gf10, Gf8
  • Grill Ag(1824,1836,1848,2424,2436,2448)
  • Jade Oven Jtrh, Jsr-(24,36)
  • Southbend Model Convection Oven 400 After 4-19-02.
  • Vulcan Hart
  • Grill G-40~
  • Series: 900, 900A.
  • Range Models 24,36,48,481,148,60,160,260, Ending
  • With Suffux L, Lc, Lcc, Series: 77R, Vg.
  • Wolf Model?
CECILWARE:
GRINDMASTER:
Reviews
Write Your Own Review
You're reviewing:Jade Range 4612600000 Convection Oven Thermocouple 18" Long 20-30mV 1900 Series
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 4612600000 Thermocouple?

Clean the thermocouple tip regularly to remove grease and carbon buildup. Inspect wiring and connections for corrosion or looseness. Ensure proper alignment with the pilot flame. Regular checks help maintain accurate temperature sensing and safe operation.

What are common issues with the Jade Range 4612600000 Thermocouple?

  • Weak or intermittent millivolt signal due to wear or contamination.
  • Open circuit or broken lead wires causing flame sensing failure.
  • Corrosion at connection points leading to unreliable readings.
  • Thermocouple drift causing inconsistent pilot detection.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow equipment to fully cool before servicing.

Step2: Remove burner access panel and locate existing old thermocouple assembly.

Step3: Carefully disconnect old thermocouple lead from the gas valve connection.

Step4: Unscrew and remove old probe from mounting bracket.

Step5: Install new thermocouple, positioning tip correctly in pilot flame path.

Step6: Secure fittings, reconnect to valve, and test for proper output and stable flame safety operation.
