Wells 50570 Infinite Switch 120V/15A
Special Price $29.92 Regular Price $38.86
In stock
SKU
50570
Manufacturer:

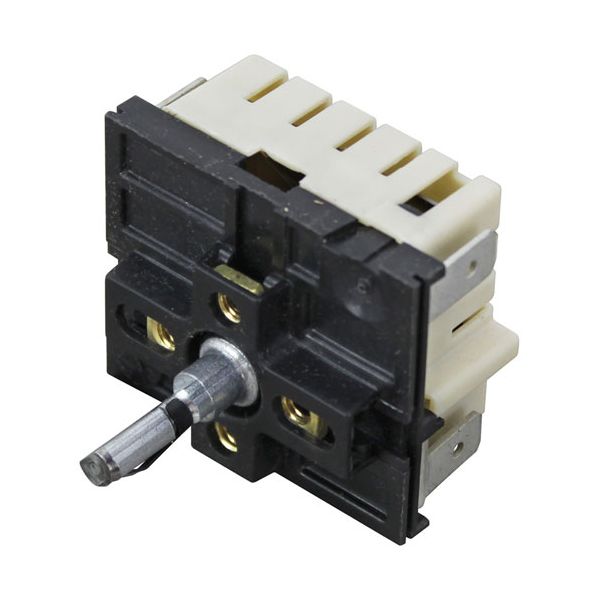

The Wells 50570 Infinite Switch 120V 15A regulates the amount of heat produced by adjusting the amount of electrical current flowing to the warming element in a continuous range of settings, not in discrete steps. Its rotary action is attached to the control shaft in such a way that rotation of the knob changes the resistance and changes the power level of the component. This is an unlimited button that is installed in the operator interface of compatible equipment, and the terminals can be accessed on the back of the control panel.
Dimensions
- Length: 2.25 In
- Width: 1.75 In
- Height: 1.75 In
- Weight: 0.2 lbs
Product Notes
- 120V/15A )( Infinite ), Terminal( 5~
- 1/4" Tab~
- L1,L2(Line),P(Pilot),H1,H2(Load) )~
- Contacts( N.O. )'
- Style( Rotary )~
- Markings( 1-10 ) Shaft( 3/16" Od~
- 3/4" Long~
- .187" Flat Up ) 4 Screw Mt.
- Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
- Bloonfield Model?
- Delfield
- Warmer Series: 8300. Taco Bell & Kfc Units.
- Wells Warmer H33, Hw/Smp, Mod (All), Smp, Smpt, Ss4, Ss8,
- Ss10-4, Ss10-8, Ss10-10Ul, Sw8, Sw10-T, Tmp.
- Hotplate H(65,70,115)
