Hobart 700871-A Broiler Burner W/shield Deflector & Air Shutter 16-1/2" X 4-3/8" 2.408" Opening 7/16" Hole

SKU: 700871-A 1-700871-A Brand:
Hobart
Availability:
In Stock
(0)
$141.43 Price reduced from $217.93
Save $76.50
Have a Question? +1 (866) 863-0907

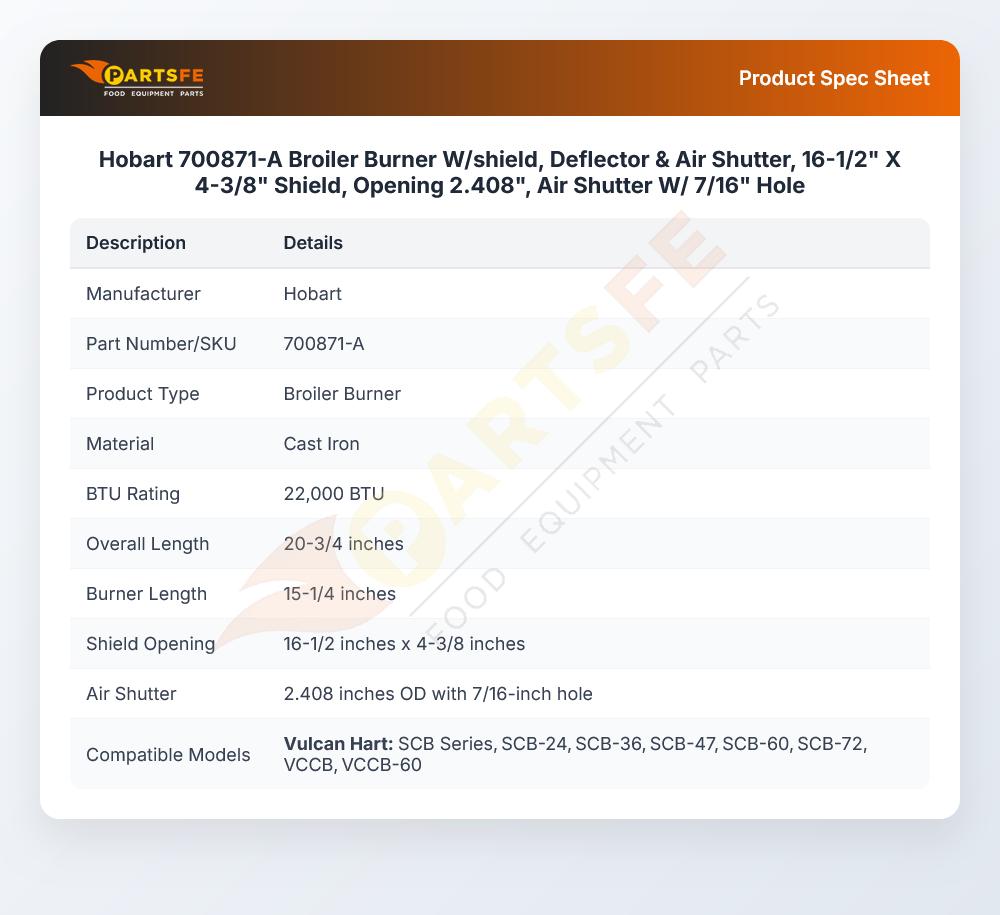

Specifications:

  • Cast Iron Broiler Burner W. Deflector & Air Shutter
  • 22,000 Btu.
  • [ 20-3/4" ] 15-1/4" Burn, 16-1/2" X 4-3/8" Shield
  • Opening 2.408" Od
  • Air Shutter W/ 7/16" Hole - # 26-1472,
  • For Same W/ Larger 9/16" Hole Use # 26-1515 Air Shutter.
  • Vulcan Vccb
  • Wolf Broiler Scb

Description

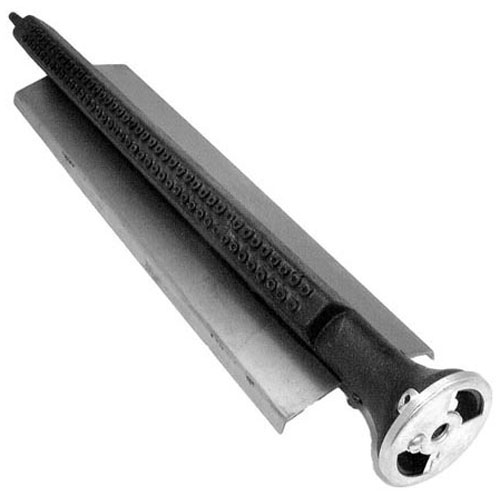

The Hobart 700871-A Broiler Burner W/Shield Deflector and Air Shutter produces fire and puts it directly into compatible cooking equipment. It measures 16-1/2 inches by 4-3/8 inches and includes a shield deflector and air shutter with a 7/16-inch gap to regulate airflow and maintain the proper air-to-gas ratio for efficient performance. It ensures even heat distribution over the cooktop while at the same time working with the appliance's gas supply and ignition systems. This part is used in commercial broiler equipment that requires stable heat output and consistent cooking results.

Dimensions:

  • Weight: 10.69 lbs
  • Length: 8.13 in
  • Height: 1.94 in
  • Width: 1.94 in

HOBART:

00-700871-00004 00-700871-0000A 700871-00004 700871-0000A 700871-4 700871A 871-A 871A

VULCAN HART:

00-700871-00004 00-700871-0000A 700871-00004 700871-0000A 700871-4 700871A 871-A 871A VH700871-4
