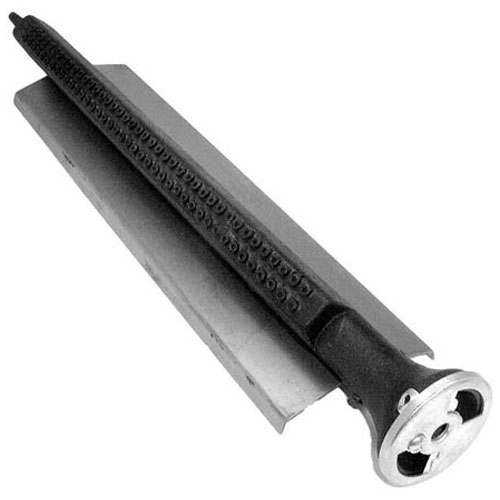

Hobart 871-A Broiler Burner W/shield Deflector & Air Shutter 16-1/2" X 4-3/8" 2.408" Opening 7/16" Hole

SKU: 871-A 1-871-A Brand:
Hobart
Availability:
In Stock
(0)
$141.43 Price reduced from $217.93
Save $76.50
Have a Question? +1 (866) 863-0907

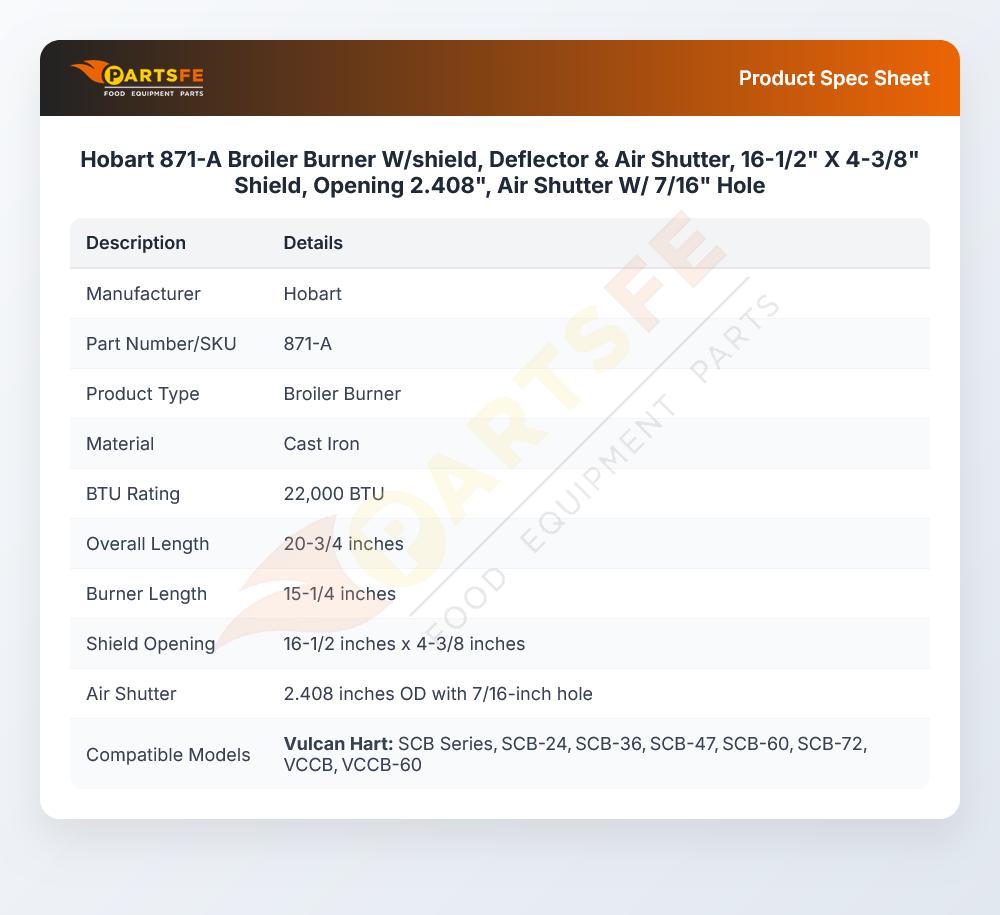

Specifications:

  • Cast Iron Broiler Burner W. Deflector & Air Shutter
  • 22,000 Btu.
  • [ 20-3/4" ] 15-1/4" Burn, 16-1/2" X 4-3/8" Shield
  • Opening 2.408" Od
  • Air Shutter W/ 7/16" Hole - # 26-1472,
  • For Same W/ Larger 9/16" Hole Use # 26-1515 Air Shutter.
  • Vulcan Vccb
  • Wolf Broiler Scb

Description

The Hobart 871-A Broiler Burner W/Shield Deflector and Air Shutter is a part that produces and dispenses heat. This burner measures 16-1/2 inches by 4-3/8 inches and includes a shield deflector and an air shutter, which has a 7/16-inch hole to improve control of airflow and maintain an efficient air-to-gas ratio during the burn. As an element of the appliance's heat system, it works with the gas supply and ignition elements to provide even heat across the cooktop. This burner supports consistent thermal performance and is used in commercial broiler equipment for food preparation.

Dimensions:

  • Weight: 10.69 lbs
  • Length: 8.13 in
  • Height: 1.94 in
  • Width: 1.94 in

HOBART:

00-700871-00004 00-700871-0000A 700871-00004 700871-0000A 700871-4 700871-A 700871A 871A

VULCAN HART:

00-700871-00004 00-700871-0000A 700871-00004 700871-0000A 700871-4 700871-A 700871A 871A VH700871-4
