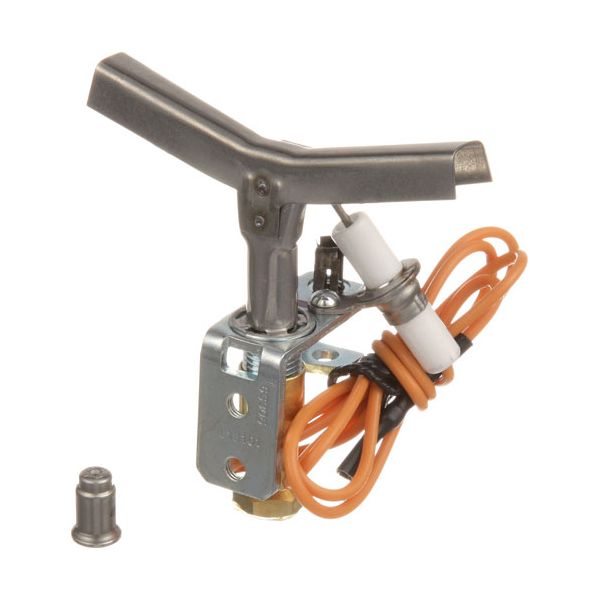

main product photo

Market Forge 93-0009 Pilot Assembly W/ Spark Plug 1/4" Tube

Be the first to review this product
Special Price $57.62 Regular Price $117.59
In stock
SKU
93-0009
Add to Wish List
Griddle & Grill Parts, Pilot Assembly,
Manufacturer:
The Market Forge 93-0009 Pilot Assembly with Spark Plug serves as a premium replacement part that ensures dependable ignition in kitchen steamer and cooking devices. This component operates through a 1/4" tube to provide effective gas flow which achieves stable performance. Operation efficiency improves because the built-in spark plug enables quick reliable ignition that prevents equipment downtime. The assembly comes with simple installation features that streamline maintenance operations to benefit improve kitchens that operate at high speeds. The product maintains its performance over time because of its sturdy build which reduces replacement requirements.

Dimensions

  • Length: 7 In
  • Width: 4 In
  • Height: 1 In
  • Weight: 0.18 lbs
https://partsfe.com/media/catalog/product/m/a/market-forge-93-0009-pilot-assembly-w-spark-plug-1-4-tube-63998-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 6S306, 3" Top Hood, Tube Size 1/4",
  • Flame Pattern 3 Way, W/Electrode 30" Wire, 1/4" Cct Long
  • Nut, Used W/ T-Couple Only, 30" Orange Wire
  • With 1/8" Flat Push-On.
  • Includes Lp Orifice, .016", # 26-1556
  • Includes Nat Orifice, .026", # 26-1557
  • Henny Penny Oea-(341, 342), Ofe-(321, 322, 323, 341, 342),
  • Ofg-(321, 322, 323, 341, 342)
  • Imperial Oven Series: Icv, Icvd.
  • Tri-Star
HENNY PENNY:
IMPERIAL:
MARKET FORGE:
TRI-STAR:
Reviews
Write Your Own Review
You're reviewing:Market Forge 93-0009 Pilot Assembly W/ Spark Plug 1/4" Tube
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Market Forge 93-0009 Pilot Assembly W/ Spark Plug?

Keep the pilot assembly clean by removing grease and debris from the spark plug and tube. Inspect connections for tightness and signs of wear or corrosion. Ensure proper ignition alignment and check gas flow regularly. Disconnect power and gas supply before servicing.

What are common issues with the Market Forge 93-0009 Pilot Assembly W/ Spark Plug?

  • Pilot fails to ignite or stay lit.
  • Weak or inconsistent spark from the plug.
  • Gas flow obstruction in the tube.
  • Loose or damaged electrical connections.
  • Carbon buildup affecting ignition performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and electrical supply and allow unit to cool completely.

Step2: Remove access panel and disconnect old pilot assembly noting tubing and wiring routing.

Step3: Install new pilot assembly into mounting bracket and align tube connection securely.

Step4: Apply approved leak detection to gas connection and tighten fittings properly.

Step5: Reconnect spark ignition wire and restore panel.

Step6: Restore gas, test ignition, check for leaks and proper flame.
