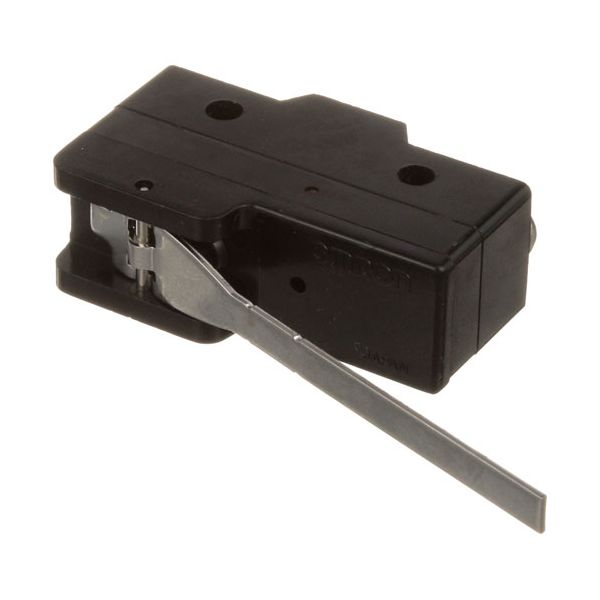

main product photo

American Range A10008 Oven Door Micro Leaf Switch W/ Spring 20A 125-250V/480V

Rating:
5 5 1
1  Review Add Your Review
Special Price $28.57 Regular Price $51.03
In stock
SKU
A10008
Add to Wish List
Electrical & Hardware, Switches & Relays, Shop by manufacturers
Manufacturer:
The American Range A10008 Door Micro Leaf Switch with Spring is a component that is suitable to be used in a number of different improve kitchen appliances such as convection ovens, dishwashers and fryers. It charges 20A at 125-250V or 480V, and is perfect for American Range, Hobart, Imperial, Vulcan, and US Range ovens, among others. This switch makes it easy to control the door operations with high precision thus eliminating the risks of overheating and electrical breakdowns. Because of its spring construction, it is built to last and is guaranteed to be a valuable addition to any improve kitchen equipment.

Dimensions

  • Length: 3 In
  • Width: 1.5 In
  • Height: 0.75 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-a10008-oven-door-micro-leaf-switch-w-spring-20a-125-250v-480v-35548-2.jpg

Product Notes

  • Door Micro Leaf Switch W/ Spring, 20A 125-250V Or 480V,
  • 1" Mt. Ctrs.
  • American Range Convection Oven Ar-C
  • Hobart Dishwasher Where Applicable.
  • Imperial Convection Oven Icv, Icvd, Ir-36, Ir-48, Ir-60,
  • Ir-72.
  • Us Range Oven Series: 836 Cuisine, 900 Phoenix,
  • Performer Ii Convection Oven.
  • Vulcan Fryer Series: Ccfd, Hi-Efficiency, Filtermate Units.
  • Oven 77, 141, 241, Ret-10, Ret-10Sm, Ret-85M, Ret-88,
  • Rgt-10, Sg-2, Sg-2Sm, Sg-10, Sg-10Sm, Sg-22, Sg77, Sg-1010.
  • Vc(4,6) Series: 90, Et.
  • Braising Pan Series E23, E40, G23, G40
AMERICAN RANGE:
10412, A10008, AMRA10008
APW WYOTT:
GARLAND:
IMPERIAL:
1155, IMP1155
MARKET FORGE:
MERRYCHEF:
SANISERV:
SOUTHBEND:
STERO:
STA2E-30301-02, STA30301-02
Reviews 1
Write Your Own Review
You're reviewing:American Range A10008 Oven Door Micro Leaf Switch W/ Spring 20A 125-250V/480V
Your Rating
FAQS
Customer Questions
What maintenance is required for the American Range A10008 Door Micro Leaf Switch?

Keep the switch contacts clean and free from grease or debris. Inspect the spring mechanism regularly for wear or misalignment. Ensure electrical connections are tight and insulated. Regular checks prevent intermittent door detection failures and ensure better oven operation.

What are common issues with the American Range A10008 Door Micro Leaf Switch?

  • Worn or oxidized contacts causing intermittent switching.
  • Misalignment preventing proper door connection.
  • Electrical arcing or overheating at terminals.
  • Switch failure causing no continuity signal.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect oven power at breaker before starting installation.

Step2: Open access panel on door assembly carefully.

Step3: Identify and remove existing micro leaf switch assembly.

Step4: Label and disconnect wiring terminals carefully.

Step5: Remove mounting screws and retaining spring.

Step6: Install new switch and secure spring in position.

Step7: Reconnect wiring, close panel, restore power, then test door switch operation.
