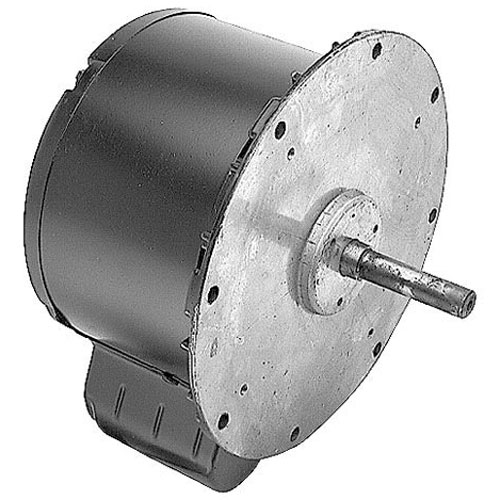

Bakers Pride BKPM1087A Motor W/Shaft 5/8" X 2-7/8" 1/2HP 1725 RPM CW 1PH 115/230V

SKU: BKPM1087A 1-BKPM1087A Brand:
Bakers Pride
Availability:
In Stock
(0)
$217.20 Price reduced from $262.96
Save $45.76
Have a Question? +1 (866) 863-0907

Specifications:

  • 115/230V, 1/2Hp, 1Ph 1725 Rpm 8.0/4.0A
  • Cw Rotation 5/8" X 2-7/8" Shaft .
  • Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
  • Product Info - If Out Of Stock Consider M123, # 68-1009
  • Wolf Blower Wheel Mb-110, # 26-4052
  • Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
  • And Red. Other Side Of Line To Yellow. Tie Blue And
  • White Together.
  • High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
  • Other Side Of Line To Yellow. Tie Red And White Together.
  • No Connections To Blue.

Description

The Bakers Pride BKPM1087A Motor W/Shaft is an electric motor assembly that fits commercial cooking equipment. It is designed to run at 1/2 horsepower and 1725 RPM, with clockwise shaft rotation, providing mechanical power to drive connected drive components. The motor converts electrical energy to continuous rotation and transmits power via the built-in shaft to the mechanical system of the equipment. It is mounted in the motor compartment of the system and attached to the drive assembly. It operates as part of the equipment that assists in reliable internal movement of the parts that are used in the preparation of food in restaurants and commercial kitchen settings.

Dimensions:

  • Weight: 28.1 lbs
  • Length: 19 in
  • Height: 10.5 in
  • Width: 12 in

ANETS:

P8110-16

BAKERS PRIDE:

BKPM1185A BKPM1185X M1087A M1185A M1185X

HOBART:

00-411205-00001 00-411205-00005 00-411205-00007 111205-1 111205-14 111205-5 111205-7 116258-4 119720-G1 18386 18387 411205-00001 411205-00005 411205-00007 411205-1 411205-5 411205-7 718387

MARKET FORGE:

10-5120 99-0665 99-3932

PITCO:

P8110-16

VULCAN HART:

00-411205-00001 00-411205-00005 00-411205-00007 111205-1 111205-14 111205-5 111205-7 116258-4 119720-G1 119720G1 18386 18387 411205-00001 411205-00005 411205-00007 411205-1 411205-5 411205-7 718387 VH00-411205-00001 VH00-411205-00005 VH00-411205-00007 VH111205-1 VH111205-14 VH111205-5 VH111205-7 VH116258-4 VH119720-G1 VH119720G1 VH18386 VH18387 VH411205-00001 VH411205-00005 VH411205-00007 VH718387
