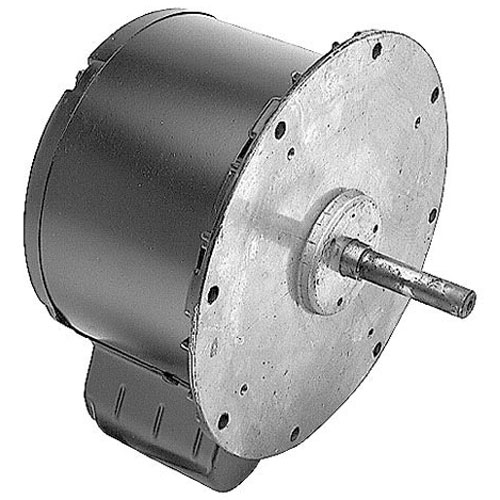

Vulcan Hart VH116258-4 1/2 HP Motor W/ 5/8" X 2-7/8" Shaft CW

SKU: VH116258-4 1-VH116258-4 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$217.20 Price reduced from $262.96
Save $45.76
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
  • [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
  • Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
  • Product Info - If Out Of Stock Consider M123, # 68-1009
  • Wolf Blower Wheel Mb-110, # 26-4052
  • Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
  • And Red. Other Side Of Line To Yellow. Tie Blue And
  • White Together.
  • High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
  • Other Side Of Line To Yellow. Tie Red And White Together.
  • No Connections To Blue.

Description

The Vulcan Hart VH116258-4 1/2 HP Motor functions as a dependable unit for commercial kitchen ventilation and blower systems to deliver reliable airflow and operational consistency. The single-phase motor operates at 1725 RPM with clockwise rotation and incorporates a strong 5/8" x 2-7/8" shaft for stable mounting. The part operates between 115/230V with 8.0/4.0A allowing users to select from various voltage options. The part measures 9-1/2" across its diameter and has 8-3/4" mount centers to fit different applications.

Dimensions:

  • Weight: 28.1 lbs
  • Length: 19 in
  • Height: 10.5 in
  • Width: 12 in

ANETS:

P8110-16

BAKERS PRIDE:

BKPM1087A BKPM1185A BKPM1185X M1087A M1185A M1185X

HOBART:

00-411205-00001 00-411205-00005 00-411205-00007 111205-1 111205-14 111205-5 111205-7 116258-4 119720-G1 18386 18387 411205-00001 411205-00005 411205-00007 411205-1 411205-5 411205-7 718387

MARKET FORGE:

10-5120 99-0665 99-3932

PITCO:

P8110-16

VULCAN HART:

00-411205-00001 00-411205-00005 00-411205-00007 111205-1 111205-14 111205-5 111205-7 116258-4 119720-G1 119720G1 18386 18387 411205-00001 411205-00005 411205-00007 411205-1 411205-5 411205-7 718387 VH00-411205-00001 VH00-411205-00005 VH00-411205-00007 VH111205-1 VH111205-14 VH111205-5 VH111205-7 VH119720-G1 VH119720G1 VH18386 VH18387 VH411205-00001 VH411205-00005 VH411205-00007 VH718387
