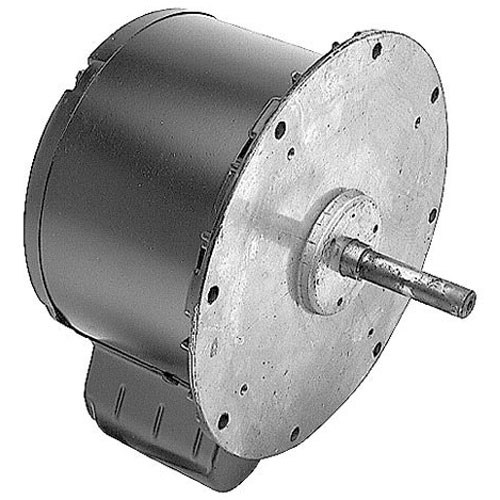

Pitco P8110-16 Motor W/Shaft 5/8" X 2-7/8" 1/2HP 1725 RPM CW 1PH 115/230V

SKU: P8110-16 1-P8110-16 Brand:
Pitco
Availability:
In Stock
(0)
$217.20 Price reduced from $262.96
Save $45.76
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
  • [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
  • Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
  • Product Info - If Out Of Stock Consider M123, # 68-1009
  • Wolf Blower Wheel Mb-110, # 26-4052
  • Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
  • And Red. Other Side Of Line To Yellow. Tie Blue And
  • White Together.
  • High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
  • Other Side Of Line To Yellow. Tie Red And White Together.
  • No Connections To Blue.

Description

The Pitco P8110-16 Motor W/Shaft is an electric drive component designed to power compatible commercial systems. Operating at 115/230 volts, single-phase, with a speed of 1725 RPM and a 1/2 horsepower rating, it provides consistent rotational force for equipment that relies on motor-driven mechanisms. The clockwise rotation, and 5/8-inch by 2-7/8-inch shaft allow proper alignment with connected assemblies such as pumps or filtration units. Commonly installed in foodservice settings, this motor supports the movement and circulation processes necessary for maintaining operation of the system.

Dimensions:

  • Weight: 28.1 lbs
  • Length: 19 in
  • Height: 10.5 in
  • Width: 12 in

BAKERS PRIDE:

BKPM1087A BKPM1185A BKPM1185X M1087A M1185A M1185X

HOBART:

00-411205-00001 00-411205-00005 00-411205-00007 111205-1 111205-14 111205-5 111205-7 116258-4 119720-G1 18386 18387 411205-00001 411205-00005 411205-00007 411205-1 411205-5 411205-7 718387

MARKET FORGE:

10-5120 99-0665 99-3932

VULCAN HART:

00-411205-00001 00-411205-00005 00-411205-00007 111205-1 111205-14 111205-5 111205-7 116258-4 119720-G1 119720G1 18386 18387 411205-00001 411205-00005 411205-00007 411205-1 411205-5 411205-7 718387 VH00-411205-00001 VH00-411205-00005 VH00-411205-00007 VH111205-1 VH111205-14 VH111205-5 VH111205-7 VH116258-4 VH119720-G1 VH119720G1 VH18386 VH18387 VH411205-00001 VH411205-00005 VH411205-00007 VH718387
