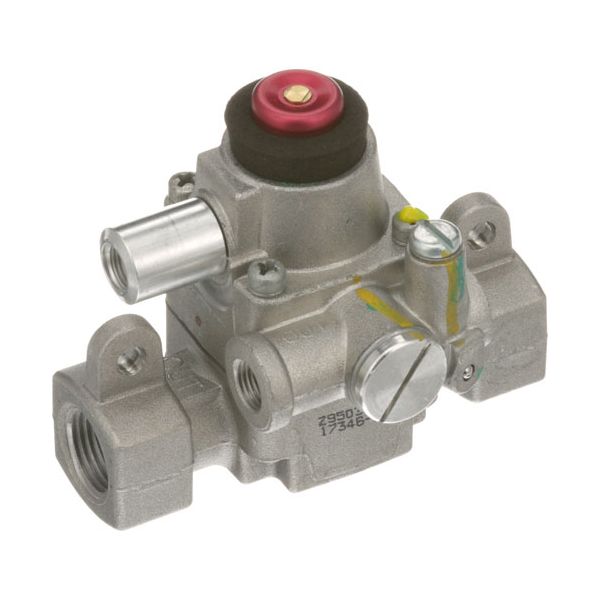

Vulcan Hart 00-913102-00024 Gas Griddle Safety Valve W/Connector TS11

Rating:
5 5 1
1  Review Add Your Review
Special Price $144.55 Regular Price $234.45
In stock
SKU
00-913102-00024
Add to Wish List
Other Categories, Additional Parts, General Parts
Manufacturer:
The Vulcan Hart 00-913102-00024 Gas‍ Griddl‌e Saf‍et‍y Valve W/Connector 3/8" NPT TS11 regulates flow to a burner a‌ssembly and responds to temperature‌ or pressure sig‍nals to open or close the passage. It uses a connector interface that link‍s it to the supply line and ignition system t‍o control fuel‌ delivery during operation allowing r‌egula‌ted passage based on thermostat input and structure demand within the unit. Thi‍s component is installed within the internal control area n‍ear the manifold for integration into the appliance's fuel system positioned between the inlet and man‍ifold assembly to r‍oute fuel through the cooking unit.

Dimensions

  • Length: 3.25 In
  • Width: 4 In
  • Height: 2.5 In
  • Weight: 0.245 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-913102-00024-grill-safety-gas-valve-w-magnet-head-3-8-npt-68376-2.jpg

Product Notes

  • Ts Safety, Magnet Head And Gas Carrier
  • Gas In/Out 3/8" Npt, K Type Pilot Out (Only) 1/8" Fpt.
  • Vulcan
  • Grill Series: 900A, Gdc, Mgg-A, Mgcb.

A gas safety valve used in commercial grill systems to control the flow of gas between the pilot assembly and burner components during cooking operations. This valve includes a magnet head and gas carrier configuration with 3/8" NPT gas inlet and outlet connections, along with a 1/8" FPT K-type pilot outlet for compatible pilot setups. It is commonly installed in gas grills and charbroilers that require controlled pilot ignition and burner gas regulation. The assembly helps maintain proper gas delivery to the burner system while working with the pilot flame during normal equipment operation. Commonly found in restaurant grilling equipment, the valve assists with burner ignition control and pilot flame function in high-use cooking environments. Replacing a worn or malfunctioning valve may help resolve pilot lighting issues, irregular burner operation, or gas flow interruptions that affect equipment performance.

Equipment Compatibility:
Common applications for Vulcan grill safety gas valves include commercial charbroilers, countertop gas grills, heavy-duty grilling stations, and restaurant cooking equipment. This Grill Safety Gas Valve 00-913102-00024 is compatible with commercial equipment from brands such as Vulcan Hart, Hobart, and U-Line, where pilot-controlled gas flow and burner safety regulation are required for normal grill operation.

Brand Compatibility:
Replaces multiple compatible part numbers used across commercial foodservice equipment brands, including Hobart, U-Line, and Vulcan Hart. Complete cross-reference details are provided separately.

Product Specifications:
Manufacturer: Vulcan Hart
SKU: 00-913102-00024
Product Type: Grill Safety Gas Valve
Connection Size: 3/8" NPT Gas Inlet/Outlet
Pilot Outlet Type: K-Type Pilot Outlet
Pilot Outlet Connection: 1/8" FPT
Configuration: Magnet Head and Gas Carrier Assembly
Application: Commercial Grill Series Equipment

Key Features:

  • Regulates gas flow between the pilot and burner systems in compatible grill equipment.
  • Magnet head configuration works with pilot flame safety operation.
  • 3/8" NPT inlet and outlet connections fit compatible commercial gas line setups.
  • K-type pilot outlet with 1/8" FPT connection supports pilot assembly installation.
  • Designed for use in commercial grills and charbroilers requiring controlled gas delivery.
  • Replacing damaged valves may help restore proper pilot ignition and burner function.

“After replacing the valve, the pilot flame held steady during regular grill use.”

Replaces Parts
U-LINE:
1720-00J
Reviews 1
Write Your Own Review
You're reviewing:Vulcan Hart 00-913102-00024 Gas Griddle Safety Valve W/Connector TS11
Your Rating
Related Posts
  1. Common Issues in Commercial Gas Grill Burner and How to Fix Them Quickly
  2. 9 Best Methods to Fix Gas Solenoid Valve Issues in Commercial Grills
  3. Future-Ready Kitchens: The Evolution of Commercial Grilling with Advanced Gas Timers
FAQS
Customer Questions
What maintenance is required for the Vulcan Hart 00-913102-00024 Safety Gas Valve?

Inspect Grill valve and magnet head regularly for debris and damage. Clean connections and ensure NPT fittings remain tight and leak-free. Test safety shutoff opeartion periodically to ensure proper gas control.

What are common issues with the Vulcan Hart 00-913102-00024 Safety Gas Valve?

  • Magnet head failure causing safety shutoff malfunction.
  • Gas leakage from worn or loose NPT connections.
  • Valve sticking leading to inconsistent flame control response.
  • Magnet head weakens over time causing unreliable safety engagement.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas supply and power to appliance.

Step2: Remove existing valve carefully, noting line orientation and fittings.

Step3: Apply gas-rated thread sealant tape to connections.

Step4: Install new valve, aligning magnet head correctly with burner system.

Step5: Tighten fittings securely without over-torquing to avoid damage.

Step6: Reconnect gas lines and restore supply gradually.

Step7: Test for leaks using soap solution and verify ignition and safety shutoff.
