Frymaster FM8060814 Fryer High-Limit/Safety Thermostat Kit 2-1/4" Bulb 425°F 1/2" MPT

SKU: FM8060814 1-FM8060814 Brand:
Frymaster
Availability:
In Stock
(0)
$105.68 Price reduced from $223.91
Save $118.23
Have a Question? +1 (866) 863-0907

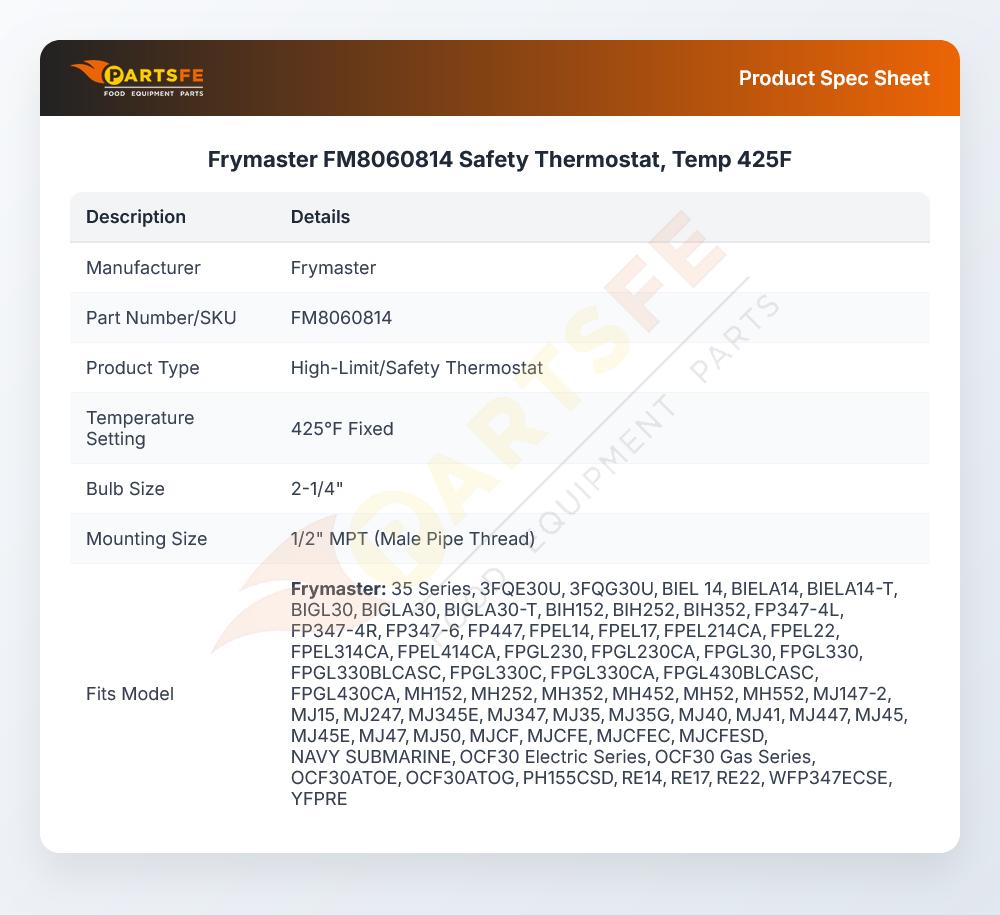

Specifications:

  • [ Fenwal Hi-Limit Kit 826-1177 ] [ Temp 425 Fixed ]
  • [ Bulb 2-1/4" ] [ Size 1/2" Mpt ]

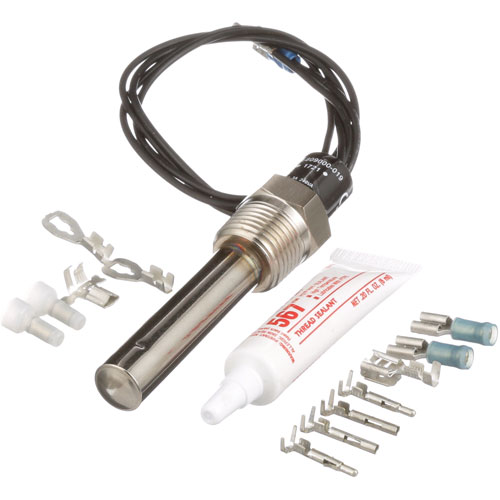

  • Kit Includeds: 806-7545 Hi-Limit T'Stat. 807-0280 Adp
  • Thermocouple, 807-1050 Split-Pin Male Terminals, 807-3448
  • Piggy-Back Terminals, 807-3479 Push-On Terminals, 807-3481
  • Nylon Bobtail Terminals, 807-3482 Female Disconnect Pins,
  • 807-3523 Spade Terminals, 807-3524 Pin Receptacle Terminals,
  • 815-8000 Loctite 567 Tube,
  • 819-5393 Instruction Sheet.
  • Does Not Come W/Lead Wire Adapter H-132A, # 38-1524.
  • Frymaster Fryer Bimh-52, Fh-50-Sc, Fph-250-Sd (2Nd High
  • Limit), Gf14, Mac(50,51,150,151,250,251,350,351 All 2Nd
  • Hi-Limit), Fm45 Mach52, Mj35, Mj45, Mj56, Mj235,
  • Series: H50, Mjh-(50,250) Hi Effeciency.
  • Mjcf/Mjcfe, Series: Fm35,Biph14, Bire14, Fph17, H14, H14

Description

The Frymaster FM8060814 Fryer High-Limit/Safety Thermostat Kit provides an automatic shutdown by monitoring cooking oil temperature and disconnecting the heating circuit if the oil reaches the preset 425°F limit. Incorporating a 2-1/4-inch sensing bulb and 1/2-inch MPT connection, the thermostat measures oil temperature continuously to support prevent overheating during operation. Installed through the fry pot with the sensing bulb positioned directly in the oil, the kit interfaces with the fryer's electrical safety circuit and temperature controls. It operates alongside the operating thermostat and heating assembly to maintain stable temperature regulation and consistent fryer performance.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 10 in
  • Height: 10 in
  • Width: 1 in

DEAN:

806-0178 806-0178SP 806-0179 806-0714 806-0814 806-3410 806-3515 806-5333 806-7550 8067550 807-0095 807-2274 826-1177 826-2454 8261177 8262454

FRYMASTER:

806-0178 806-0178SP 806-0179 806-0714 806-0814 806-3410 806-3515 806-5333 806-7543 806-7550 8060178 8060178SP 8060179 8060714 8060814 8061853 8063410 8063515 8065333 8067541 8067543 8067546 8067550 807-0095 807-2274 8070095 8072274 826-1177 826-2454 8261177 8262454 FM806-0178 FM806-0178SP FM806-0179 FM806-0714 FM806-0814 FM806-3410 FM806-3515 FM806-5333 FM806-7550 FM8060178 FM8060178SP FM8060179 FM8060714 FM8063410 FM8063515 FM8065333 FM8067550 FM807-0095 FM807-2274 FM8070095 FM8072274 FM826-1177 FM826-2454 FM8261177 FM8262454

GARLAND:

1292800 F826-1177 GL1292800
