Johnson Controls G760BAD-1 Direct Spark Ignition Control Module 24V

SKU: G760BAD-1 1-G760BAD-1 Brand:
Johnson Controls
Availability:
In Stock
(1)
$180.62 Price reduced from $255.12
Save $74.50
Have a Question? +1 (866) 863-0907

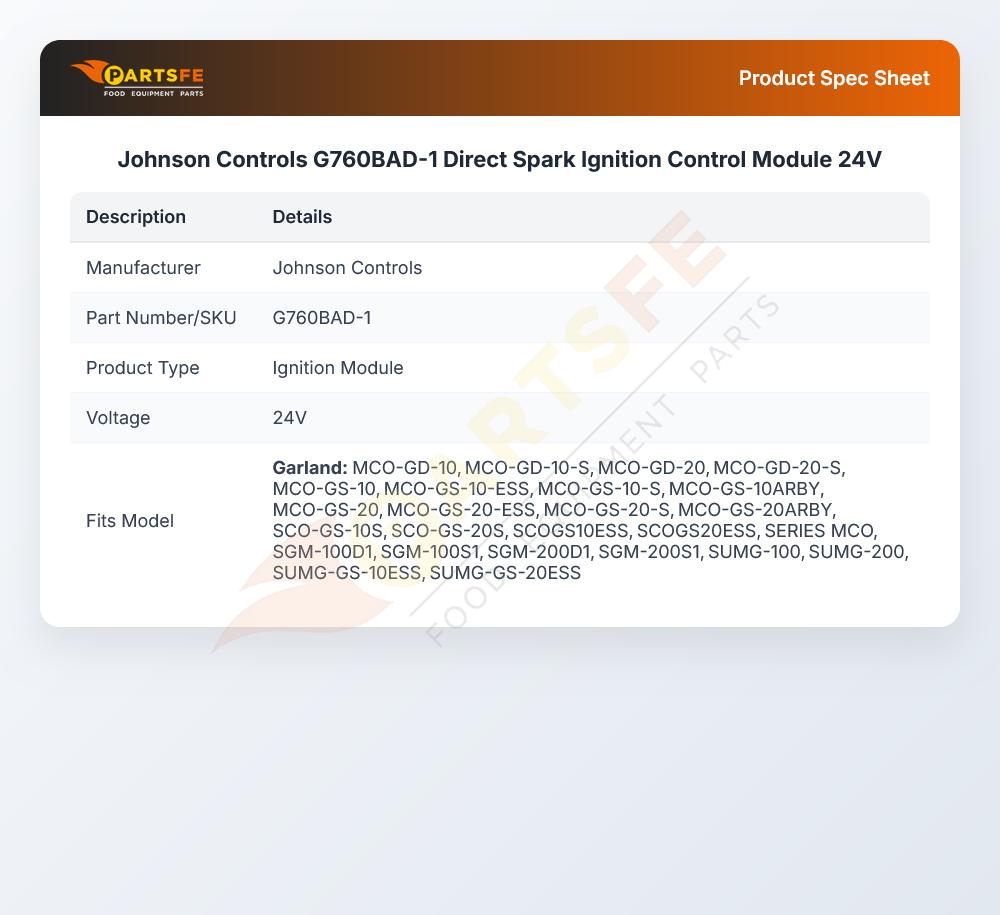

Specifications:

  • 24V Direct Spark Ignition Control Module
  • Johnson # G760Bad-1 ( Discontinued) Now Baso,
  • Baso Black Module Bg1100Maak-1G
  • 0 Pre-Purge, 3 Trials @ 5 Min Intervals, 4 Sec Retry,
  • Includes Rajah Spark Adaptor And Instructions.
  • For Blodget 36432 Use # 44-1596 Control Board.
  • Cleveland Model
  • Skillet Sgl/Sgm-30/40-T/R
  • Garland Model?

Description

The Johnson Controls G760BAD-1 Direct Spark Ignition Control Module 24V provides reliable ignition safety for cooking appliances that includes Blodgett 36432 and Cleveland SGL/SGM-30/40-T/R and Garland models. The module operates burners efficiently through a 0 pre-purge process and three 5-minute trial attempts with a 4-second retry period. Users can easily install this product because it comes with both a Rajah spark adaptor and clear instructions. The BASO BG1100MAAK-1G has replaced the discontinued model as the current ignition control option. The ignition control system creates safer conditions while reducing equipment non-use time along with enhancing professional kitchen operational efficiency.

Dimensions:

  • Weight: 0.75 lbs
  • Length: 7 in
  • Height: 2.5 in
  • Width: 5 in

CLEVELAND:

2329100 CK4533053 SK2329100

GARLAND:

2329100 4521585 4533053 CK4533053 GL4521585 GLCK4533053

JOHNSON CONTROLS:

720BAD-2 G720-BAD-1

Step1: Turn off the gas and power to the appliance.

Step2: Remove the old ignition control module from the control panel.

Step3: Disconnect all wiring carefully, labeling wires if necessary.

Step4: Inspect the mounting bracket and terminals for damage.

Step5: Install the new control module in the same position, securing it with screws.

Step6: Reconnect all wires according to the wiring diagram.

Step7: Power on the appliance and test ignition cycles.

Step8: Observe multiple ignition cycles to ensure accurate operation.

  • What maintenance is required for the Johnson Controls G760BAD-1 Direct Spark Ignition Control Module?

    Inspect the module and wiring regularly for dirt, corrosion, or loose connections. Clean contacts gently and ensure proper grounding. Verify ignition sequences during routine checks. Always power down the system before servicing to avoid electrical hazards.

  • What are common issues with the Johnson Controls G760BAD-1 Direct Spark Ignition Control Module?

    • Failure to ignite the burner.
    • Intermittent or erratic sparking.
    • Faulty flame sensing or detection errors.
    • Module not responding due to loose or corroded connections.
