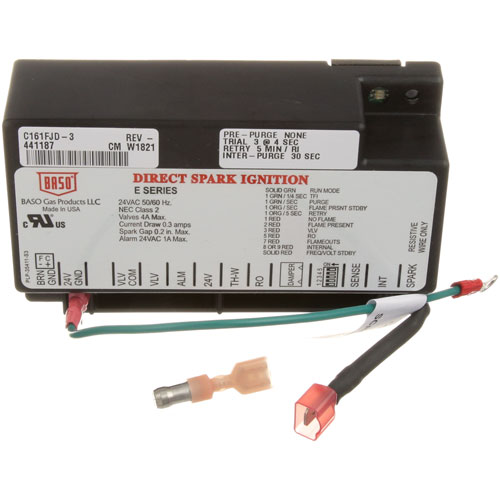

Cleveland CK4533053 Range Direct Spark Ignition Control Module 24V

SKU: CK4533053 1-CK4533053 Brand:
Cleveland
Availability:
In Stock
(2)
$180.62 Price reduced from $255.12
Save $74.50
Have a Question? +1 (866) 863-0907

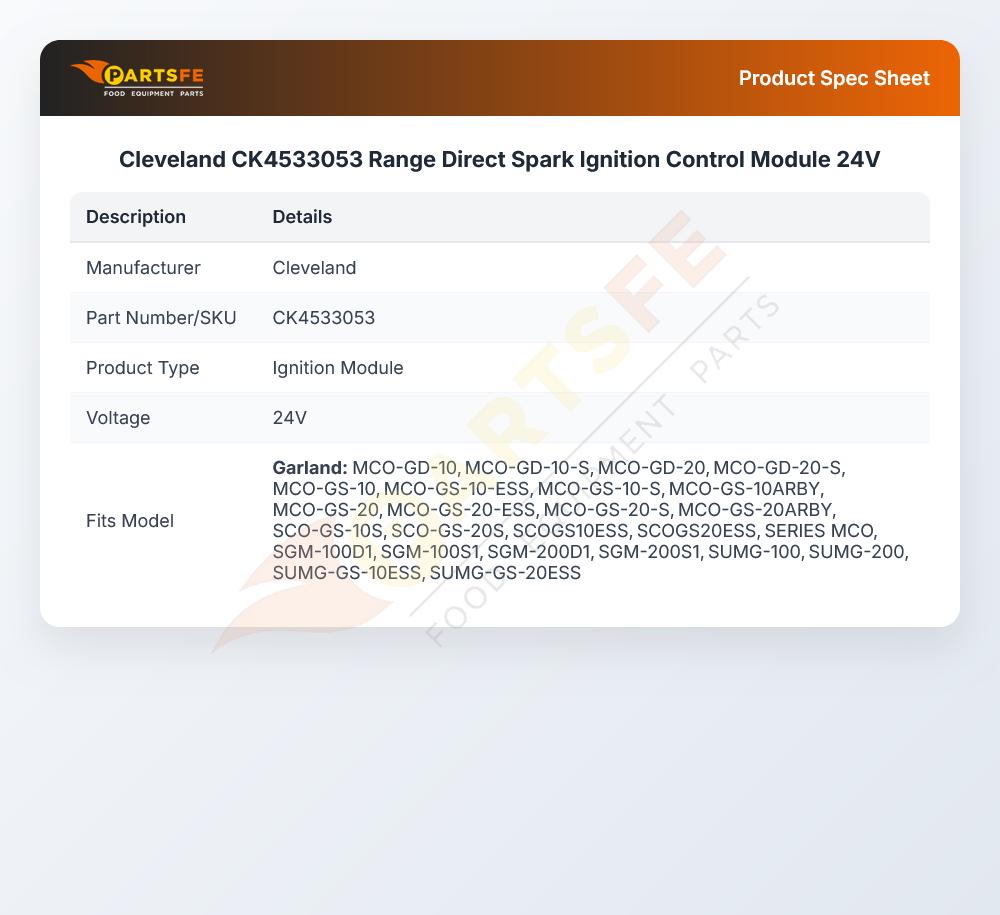

Specifications:

  • 24V Direct Spark Ignition Control Module
  • Johnson # G760Bad-1 ( Discontinued) Now Baso,
  • Baso Black Module Bg1100Maak-1G
  • 0 Pre-Purge, 3 Trials @ 5 Min Intervals, 4 Sec Retry,
  • Includes Rajah Spark Adaptor And Instructions.
  • For Blodget 36432 Use # 44-1596 Control Board.
  • Cleveland Model
  • Skillet Sgl/Sgm-30/40-T/R
  • Garland Model?

Description

The Cleveland CK4533053 Direct Spark Ignition Control Module W/Wire Kit is an electronic control unit, that regulates the ignition process in commercial cooking ranges. It produces and controls the spark needed to start gas burners, and it is safe and accurate to start the appliance. This module is powered by a 24-volt system and has a compatible wire kit to be installed. It is used in commercial ranges, and is essential in controlling the ignition timing of burners as well as ensuring the flames perform consistently during operation.

Dimensions:

  • Weight: 0.75 lbs
  • Length: 7 in
  • Height: 2.5 in
  • Width: 5 in

CLEVELAND:

2329100 SK2329100

GARLAND:

2329100 4521585 4533053 GL4521585 GLCK4533053

JOHNSON CONTROLS:

720BAD-2 G720-BAD-1 G760BAD-1

Step1: Turn off power to the appliance and disconnect the gas supply.

Step2: Remove the appliance access panel to locate the existing ignition control module.

Step3: Disconnect wiring and mounting screws from the old module.

Step4: Install the new module in the same position and secure with screws.

Step5: Reconnect all wires, ensuring proper placement.

Step6: Replace the access panel, restore gas and power, and test ignition.

Step7: Always ensure power and gas are off before handling components.

  • What maintenance is required for the Cleveland CK4533053 Direct Spark Ignition Control Module?

    Regularly inspect wiring connections and terminals for looseness or corrosion to ensure proper electrical flow. Keep the module area clean and dry to prevent interference. Verify secure mounting and avoid exposure to excessive heat. Always disconnect power before servicing to ensure safety.

  • What are common issues with the Cleveland CK4533053 Direct Spark Ignition Control Module?

    • Failure to generate spark, preventing burner ignition.
    • Intermittent ignition or inconsistent spark timing.
    • Electrical faults due to damaged wiring or loose connections.
    • Module malfunction causing repeated ignition attempts or no ignition cycle.

Customer Reviews

5 Based on 2 reviews
5 ★
2
4 ★
0
3 ★
0
2 ★
0
1 ★
0
2 reviews
  • Spark Control
    Nash —

    Module change solved repeated spark interruption issue.

  • Efficient Control
    Alexandre Bilodeau —

    Enhances oven performance through precise ignition
