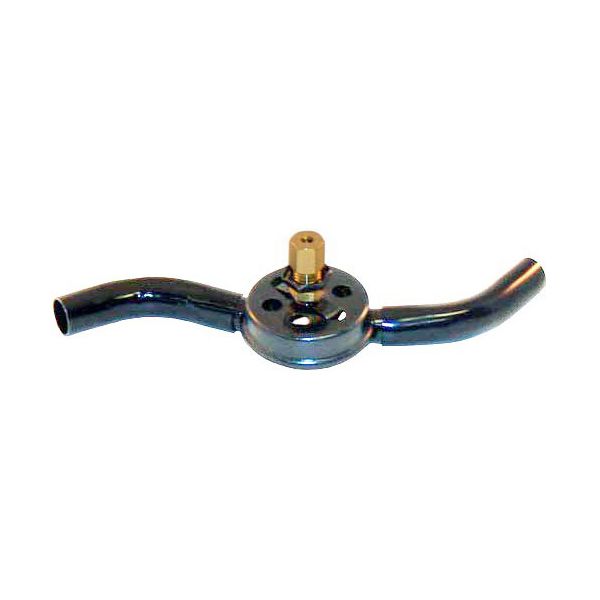

Garland GLG7804-280 Faucet Open Top Pilot Assembly 6" 1/8" CCT Nut & Sleeve
Special Price $19.68 Regular Price $35.14
In stock
SKU
GLG7804-280
Manufacturer:
The Garland GLG7804-280 Faucet Open Top Pilot Assembly 6 in 1/8 in CCT Nut and Sleeve is a pilot ignition part that is used in cooking equipment. It offers a regulated flame to activate the main burner by the gas to a stable pilot jet that is close to the burner area and is attached to the gas supply line with a fitting. It also helps in the system to have a accurate ignition and safe operation by having a steady pilot flame that allows the main burners to be lit when requested by the appliance control system.
Dimensions
- Length: 4 In
- Width: 3 In
- Height: 1.25 In
- Weight: 0.2 lbs
Product Notes
- Open Top Pilot Assembly,
- 6" Long, 1/8" Cct Nut & Sleeve, 3" Flash Tube Only,
- 1-5/8" Dia Ring,
- For 1/8" X 3 Ft. Copper Clad Steel Tubing Order #26-2271
- For 1/8" Aluminum Tubing Order #26-1417 (1/8" X 50 Ft. Roll)
- Garland Series 40/50, G280, H280, P280, G30A, After 1968
