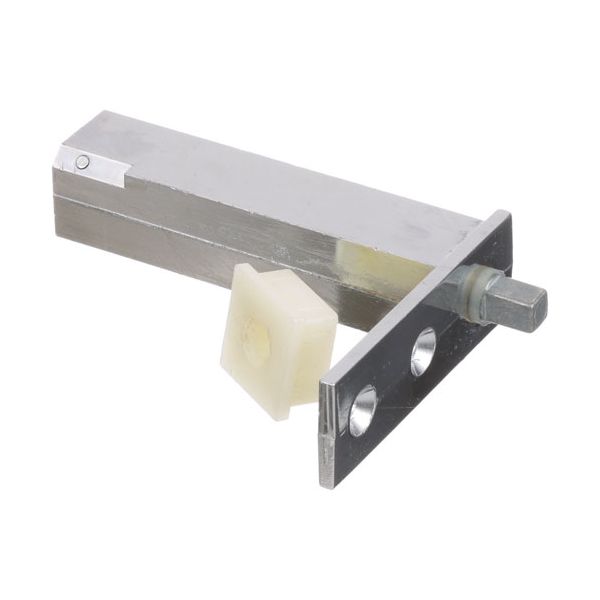

Delfield 3230010 Concealed Cartridge Door Hinge Assembly W/Extended Pin

Rating:
5 5 9
9  Reviews Add Your Review
Special Price $14.44 Regular Price $59.00
In stock
SKU
3230010
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Delfield 3230010 Concealed Cartridge Door Hinge Assembly With Extended Pin works by making use of an internal spring system in a shielded casing to allow the movement of the door to be controlled. This part is involved through a lengthy screw that connects the gate frame to the panel so that there is uniform rotation in each opening and closing cycle. This hardware allows for the exterior to be made streamlined by hiding the mechanical aspects in the entrance structure and allows the required pivot points of heavy-duty commercial equipment.

Dimensions

  • Weight: 0.625 lbs
https://partsfe.com/media/catalog/product/d/e/delfield-3230010-concealed-hinge-w-extended-pin-60913-2.jpg
Supporting controlled door movement on a commercial pizza prep table, the Delfield 3230010 Pizza Prep Table Concealed Cartridge Hinge is a hinge component installed within the door assembly. Its concealed cartridge design provides the pivot mechanism for opening and closing movement while remaining positioned within the door structure. The 25 IN-LBS rating indicates the hinge's specified torque capacity for supporting the door movement and positioning.

Hinge Movement:
Transfers the door's movement through the hinge pivot as the door moves between open and closed positions. The hinge supports controlled rotation and helps distribute the door load through the mounting structure during repeated operation.

Concealed Mounting:
Uses an internal mounting arrangement that keeps the hinge positioned within the door and cabinet structure rather than exposed on the exterior. This configuration helps protect the hinge from direct contact while maintaining a clean equipment appearance.

Replacement Guidelines:
Replace the Pizza Prep Table Concealed Cartridge Hinge if it is cracked, bent, deformed, worn, loose, or no longer supports proper door movement and alignment. The part number 3230010 should be verified before replacement to ensure the correct concealed hinge is selected. Replace the hinge if deterioration affects door support, alignment, movement, closing, or normal equipment operation.

Common Failure Symptoms:

  • Door movement becomes uneven or restricted.
  • Door appears misaligned within the cabinet opening.
  • Hinge shows visible bending, cracking, or deformation.
  • Hinge becomes loose within the mounting structure.
  • Door does not maintain its intended position during opening or closing.

Equipment Compatibility:
The Delfield 3230010 Pizza Prep Table Concealed Cartridge Hinge is specified for door assemblies requiring this concealed hinge configuration. Verify the equipment model, part number, mounting arrangement, and door configuration before purchase.

Technical Specifications:
Brand: Delfield
Part Number: 3230010
Product Name: Concealed Hinge
Torque Rating: 25 IN-LBS
Application: Pizza Prep Table

Replaces Parts
DELFIELD:
000BFW0030, 3230010, 3234225, 3237509, 3237516, 3237516-S, 3237516S, DEL3230010, DEL3234225, DEL3237509, DEL3237516, DEL3237516-S, DEL3237516S
Reviews 9
Write Your Own Review
You're reviewing:Delfield 3230010 Concealed Cartridge Door Hinge Assembly W/Extended Pin
Your Rating
Related Posts
  1. Electrolux Refrigerator Error Troubleshooting
  2. International Pizza Expo for 2024 Las Vegas
FAQS
Customer Questions
What maintenance is required for the Delfield 3230010 Concealed Hinge With Extended Pin?

Regularly lubricate the hinge with a light machine oil to ensure smooth movement and prevent squeaking. Check for loose screws and tighten as needed to maintain alignment. Clean debris from the hinge to avoid corrosion, and inspect for signs of wear or bending to ensure efficient operation.

What are common issues with the Delfield 3230010 Concealed Hinge With Extended Pin?

  • Door sagging or misalignment.
  • Stiff or squeaky movement.
  • Worn or bent hinge pins.
  • Loose mounting screws are affecting stability.

What does the Delfield 3230010 Concealed Cartridge Hinge support?

The Delfield 3230010 supports the hinged movement of a door on a pizza prep table. It allows the door assembly to move between its open and closed positions.

What does the cartridge design contribute to the Delfield 3230010?

The cartridge forms the internal movement mechanism of the hinge assembly. It provides the mechanism that allows the hinge to operate as the door moves.

Why is the Delfield 3230010 designed as a concealed hinge?

The concealed design places the primary hinge mechanism within the door or equipment structure. This keeps the hinge integrated into the pizza prep table's door hardware rather than externally exposed.

What equipment application is associated with the Delfield 3230010?

The Delfield 3230010 is associated with pizza prep table equipment and serves as part of its door hardware. Its application is specifically tied to the access door of this type of foodservice equipment.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Open the door and support it securely to prevent movement.

Step2: Remove the old hinge by unscrewing it from the door and frame.

Step3: Align the new concealed hinge with the mounting holes.

Step4: Secure the hinge with screws, ensuring the extended pin fits properly.

Step5: Check door alignment and adjust hinge position if necessary.

Step6: Test the door for smooth opening and closing, confirming stability.
