Traulsen 263708 1-1/4" Offset Edgemount Cam Lift Hinge , 5-3/4" x 1-1/16"
Special Price $54.98 Regular Price $98.17
In stock
SKU
263708

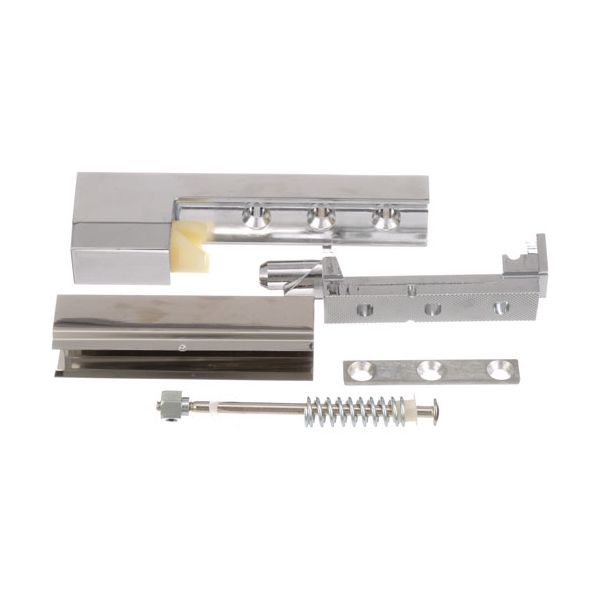

The Traulsen 263708 Hinge Kit Assembly is designed to fit between the door and the cabinet enabling the door to move freely in an opening and closing motion and be properly aligned. It operates by use of a series of hinge elements that hold the weight of the door and provide steady movement during movement. It is a hinge kit assembly that is mounted on commercial refrigeration units and is mounted at the door mounting points to hold the door and enable better operation.
Manufacturer:
Dimensions
- Length: 2.375 In
- Width: 1.875 In
- Height: 5.75 In
- Weight: 1.05 lbs
Product Notes
- Spring Hinge Assembly
- Edgemount Cam Lift Hinge, Chrome
- 1-1/4" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4"
- Screw Centers 1-1/16"
- Outside Mount Hole Centers 2-1/8"
- Screws Not Included, Use #12 Or M5 Flat Head Screws.
- Chg Series R50-2851,
- Series 2850
- Traulsen
