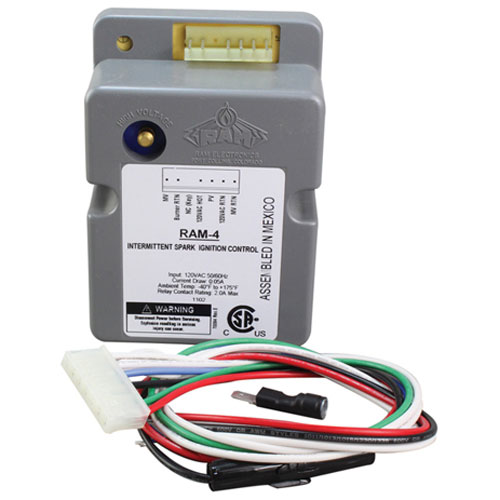

Imperial 37110 Range Ignition Module Kit 120V 50/60Hz

An ignition control module tackle designed to induce and regulate the spark demanded for burner ignition in commercial gas ranges, ensuring harmonious and reliable ignition performance. Operating at 120V with 50/ 60Hz comity, this module controls the ignition sequence by delivering electrical beats to the spark system, enabling proper burner lighting. The tackle includes a 6- leg wiring harness, spark terminal accessory, and a# 85- 1070 spark draw connector( womanish to 1/4" manly drive- on), allowing for proper integration with being systems. Wiring plates are handed for supported models, helping ensure correct installation and operation. Replacing an imperfect ignition module or worn ignition factors can restore proper spark generation, reduce ignition delays, and support safe, effective cuisine operations.

Equipment Compatibility:
Engineered to support compatible Imperial equipment where consistent spark ignition and controlled burner startup are required for reliable and safe operation.

Product Specifications:
SKU: 37110
Manufacturer: Imperial
Product Type: Spark Ignition Control Kit
Voltage: 120V
frequency: 50/ 60Hz
Connector: #85-1070 spark draw connector, featuring a female terminal to 1/4" male drive-on configuration.

Key Features:

• Provides controlled spark ignition to ensure reliable and consistent burner lighting
• Includes wiring harness and associated components to support proper electrical connection and installation
• Operates on 120V, 50/60Hz systems for compatibility with standard commercial equipment
• Replacement of a faulty module restores proper ignition sequencing and reduces startup failures
• Includes mounting plates to support correct installation across specified equipment models

“After replacement, burners tend to ignite more smoothly with fewer delays between cycles. “

Step1: Turn off the gas and unplug the range.

Step2: Open the control panel to access the ignition module.

Step3: Label and disconnect all wiring connections.

Step4: Remove mounting screws and replace the module.

Step5: Reconnect wires per the diagram and secure the unit.

Step6: Restore power and gas, test ignition on all burners.

• Can the ignition module kit be used as a replacement for older oven models, or is it specifically designed for newer appliances?

  Many ignition module kits are designed to be compatible with both older and newer oven models. However, it's essential to check compatibility before making a purchase.

• Are there any specific maintenance requirements for the ignition module kit, and how can I ensure its optimal performance over time?

   Regular cleaning and inspection may be recommended. Refer to the product manual for specific maintenance instructions to ensure the optimal performance of the ignition module kit.

• What are the common signs that indicate the need to replace the ignition module kit in my oven?

  Signs may include difficulty in igniting the oven, intermittent sparking, or a complete failure to light. If you experience these issues, it may be time to consider replacing the ignition module kit.

• What maintenance is required for the Imperial 37110 Ignition Module Kit?

  Inspect the module kit regularly for loose wires, corrosion, or burnt connectors. Clean terminals carefully and ensure proper voltage supply before testing. Routine checks prevent ignition failure and reduce fire hazards. Always disconnect power before servicing.

• What are the common issues with the Imperial 37110 Ignition Module Kit?

  • Burners failing to ignite or delayed ignition
  • Intermittent sparking or no spark at all
  • Loose or corroded electrical connections
  • Module overheating or internal component failure.
