main product photo

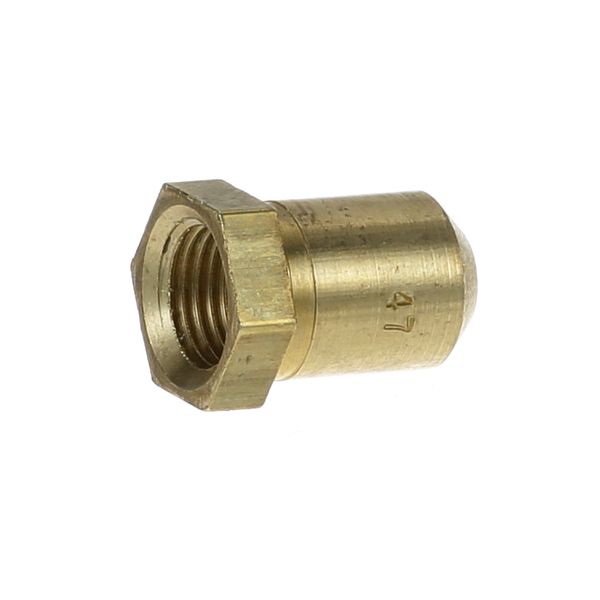

Southbend 1008747 Burner Orifice 47

Be the first to review this product
Special Price $8.28 Regular Price $11.84
In stock
SKU
1008747
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The Southbend 1008747 Burner Orifice 47 operates through the regulation of the gas flow into the burner so that the correct quantity of fuel can flow into the burner through its accurately sized opening to be burned. The rate of burning fuel is accurate on the diameter of the orifice through which the gas passes and affects the nature of the flames during operation. It is fitted in the burner system of commercial kitchens and food service conditions. This element aids in the alignment of the gas supply with the design needs of the burners of the range.

Dimensions

  • Length: 0.75 In
  • Width: 0.25 In
  • Height: 0.75 In
  • Weight: 0.01 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1008747-orifice-47-47016-2.jpg

Product Notes

  • Burner Orifice, #47, 3/8"-27, 1/2" Long.
  • Star Griddle 615, 624, 636, 648.
BAKERS PRIDE:
DYNAMIC COOKING SYSTEMS:
GLASS MAID:
ROYAL RANGE:
SOUTHBEND:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Southbend 1008747 Burner Orifice 47
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Southbend 1008747 Orifice?

Regularly inspect the orifice for carbon buildup, grease, or clogging that can affect gas flow. Clean gently using proper tools to avoid damage. Ensure secure fitting and proper alignment during reassembly. Periodic checks can maintain consistent burner performance and better operation.

What are common issues with the Southbend 1008747 Orifice?

  • Clogging from grease or food debris restricting gas flow.
  • Uneven flame or weak burner performance.
  • Wear or deformation causing improper gas-air mixture.
  • Difficulty igniting burner due to partial blockage or misalignment.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas supply and electrical power, allow appliance to cool completely before servicing.

Step2: Remove burner assembly and carefully access old orifice housing.

Step3: Unscrew and remove existing orifice carefully using proper tool.

Step4: Install new orifice, hand-tighten first to avoid damage.

Step5: Secure with proper tool to manufacturer torque specification.

Step6: Reassemble burner components ensuring proper alignment and fit.

Step7: Turn gas on, check for leaks using proper solution, then test flame safely.
