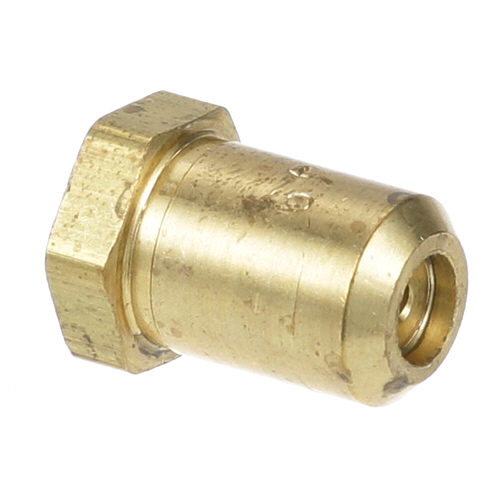

Bakers Pride R3043X Charbroiler Burner Orifice 49

SKU: R3043X 1-R3043X Brand:
Bakers Pride
Availability:
In Stock
(0)
$8.28 Price reduced from $11.84
Save $3.56
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice #49
  • Imperial
  • Broiler Icb-4827, Icb-6027.
  • Series: Gd (Glowing Devil).
  • Range Series: Ihr.

Description

The Bakers Pride R3043X Charbroiler Burner Orifice 49 is a component that regulates the gas in the appliance burner. As the gas goes through this orifice, it helps to establish the proper flame features required to warm the Charbroiler cavity. It is fitted in the burner assembly of commercial and domestic appliances at the cross of the gas line and the burner tube. This aspect balances the gas feed and the building of the part that helps to keep the rate of the presence of the fuel and flame constant throughout the baking and roasting process.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

DYNAMIC COOKING SYSTEMS:

13005-47

GARLAND:

1020847 223242-47 M8-47

GLASS MAID:

8-47

HOBART:

00-719951-00047 719951-00047 719951-47

ROYAL RANGE:

1122-47

SOUTHBEND:

1006447 1008747

STAR MFG:

2J-Y7216 Y7216

VULCAN HART:

00-719951-00047 719951-00047 719951-47

Step1: Turn off gas supply and disconnect power for safety.

Step2: Allow the unit to cool completely before starting.

Step3: Locate and access the burner assembly panel.

Step4: Remove the old orifice using a proper tool.

Step5: Install the new orifice securely without overtightening.

Step6: Reassemble components and restore gas supply.

Step7: Check for leaks and test burner operation carefully.

  • What maintenance is required for the Bakers Pride R3043X Burner Orifice?

    Regular inspection of the burner orifice ensures proper gas flow and efficient combustion. Clean the opening to remove grease, dust, or carbon buildup and prevent blockages. Check for wear or obstruction and ensure secure fitting for safe operation.

  • What are common issues with the Bakers Pride R3043X Burner Orifice?

    • Uneven gas flow causing weak or yellow flame.
    • Carbon buildup reducing combustion efficiency.
    • Wear or damage leading to inconsistent heating.
    • Improper alignment restricting fuel delivery.
