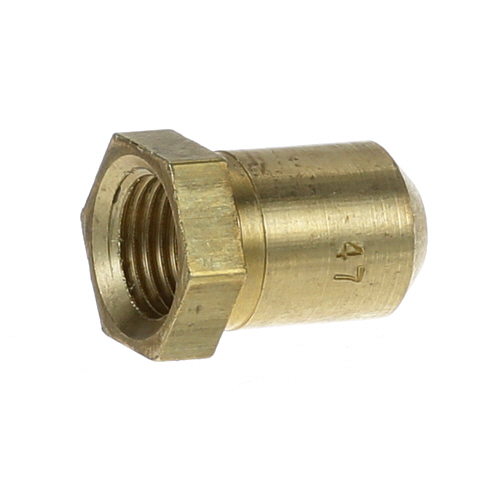

Star Mfg 2J-Y7216 Gas Griddle Orifice 47

SKU: 2J-Y7216 1-2J-Y7216 Brand:
Star Mfg
Availability:
In Stock
(0)
$8.28 Price reduced from $11.84
Save $3.56
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice, #47, 3/8"-27, 1/2" Long.
  • Star Griddle 615, 624, 636, 648.

Description

The Star Mfg 2J-Y7216 Griddle Orifice 47 operates by controlling the amount of gas entering the burner and also by permitting the fuel to flow through a predetermined size of opening that affects the combustion. When gas passes through this adjustable opening, it determines the right flame properties when the cooking surface is being used. It is fitted in the burner of commercial griddles in restaurants and food service kitchens. This element matches the supply of gas to the design, which helps to maintain the supply of fuel.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

BAKERS PRIDE:

R3043X

DYNAMIC COOKING SYSTEMS:

13005-47

GARLAND:

1020847 223242-47 M8-47

GLASS MAID:

8-47

HOBART:

00-719951-00047 719951-00047 719951-47

ROYAL RANGE:

1122-47

SOUTHBEND:

1006447 1008747

STAR MFG:

Y7216

VULCAN HART:

00-719951-00047 719951-00047 719951-47

Step1: Turn off gas/electric supply and allow system to cool.

Step2: Remove access panel and locate existing orifice assembly.

Step3: Unscrew old orifice using proper tool carefully.

Step4: Install new orifice, ensure proper alignment and threading.

Step5: Tighten securely without over-torquing.

Step6: Restore supply and check for leaks using soapy water.

Step7: Test operation, ensure stable flame and proper combustion.

  • What maintenance is required for the Star 2J-Y7216 Orifice?

    Clean the orifice regularly to prevent carbon buildup and ensure consistent gas flow. Inspect for clogging or debris during regular service. Use proper tools and shut off gas supply before maintenance to ensure safety.

  • What are common issues with the Star 2J-Y7216 Orifice?

    • Uneven or weak flame output.
    • Gas flow restriction or inconsistency.
    • Wear or erosion of orifice opening.
    • Improper fitting causing leaks or misalignment.
