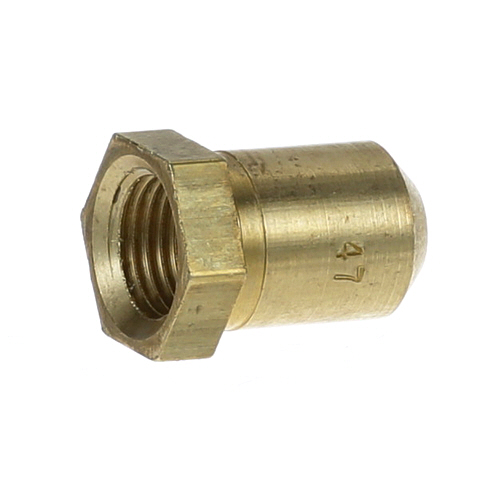

Southbend 1008747 Burner Orifice 47

SKU: 1008747 1-1008747 Brand:
Southbend
Availability:
In Stock
(0)
$8.28 Price reduced from $11.84
Save $3.56
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice, #47, 3/8"-27, 1/2" Long.
  • Star Griddle 615, 624, 636, 648.

Description

The Southbend 1008747 Burner Orifice 47 operates through the regulation of the gas flow into the burner so that the correct quantity of fuel can flow into the burner through its accurately sized opening to be burned. The rate of burning fuel is accurate on the diameter of the orifice through which the gas passes and affects the nature of the flames during operation. It is fitted in the burner system of commercial kitchens and food service conditions. This element aids in the alignment of the gas supply with the design needs of the burners of the range.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

BAKERS PRIDE:

R3043X

DYNAMIC COOKING SYSTEMS:

13005-47

GARLAND:

1020847 223242-47 M8-47

GLASS MAID:

8-47

HOBART:

00-719951-00047 719951-00047 719951-47

ROYAL RANGE:

1122-47

SOUTHBEND:

1006447

STAR MFG:

2J-Y7216 Y7216

VULCAN HART:

00-719951-00047 719951-00047 719951-47

Step1: Shut off gas supply and electrical power, allow appliance to cool completely before servicing.

Step2: Remove burner assembly and carefully access old orifice housing.

Step3: Unscrew and remove existing orifice carefully using proper tool.

Step4: Install new orifice, hand-tighten first to avoid damage.

Step5: Secure with proper tool to manufacturer torque specification.

Step6: Reassemble burner components ensuring proper alignment and fit.

Step7: Turn gas on, check for leaks using proper solution, then test flame safely.

  • What maintenance is required for the Southbend 1008747 Orifice?

    Regularly inspect the orifice for carbon buildup, grease, or clogging that can affect gas flow. Clean gently using proper tools to avoid damage. Ensure secure fitting and proper alignment during reassembly. Periodic checks can maintain consistent burner performance and better operation.

  • What are common issues with the Southbend 1008747 Orifice?

    • Clogging from grease or food debris restricting gas flow.
    • Uneven flame or weak burner performance.
    • Wear or deformation causing improper gas-air mixture.
    • Difficulty igniting burner due to partial blockage or misalignment.
