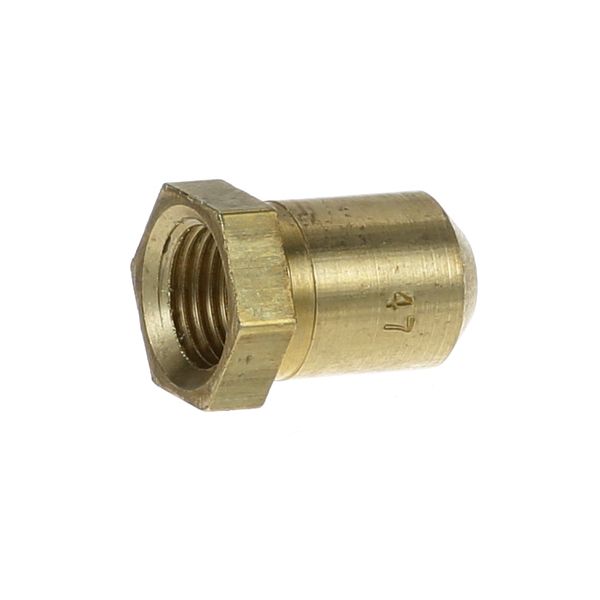

Star Mfg 2J-Y7216 Gas Griddle Orifice 47

SKU: 2J-Y7216 1-2J-Y7216 Brand:
Star Mfg
Availability:
In Stock
(0)
$8.28 Price reduced from $11.84
Save $3.56
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice, #47, 3/8"-27, 1/2" Long.
  • Star Griddle 615, 624, 636, 648.

Description

The Star Mfg 2J-Y7216 Griddle Orifice 47 operates by controlling the amount of gas entering the burner and also by permitting the fuel to flow through a predetermined size of opening that affects the combustion. When gas passes through this adjustable opening, it determines the right flame properties when the cooking surface is being used. It is fitted in the burner of commercial griddles in restaurants and food service kitchens. This element matches the supply of gas to the design, which helps to maintain the supply of fuel.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

This Part Fits the Following Models

100 models
Bakers Pride XX-10 Bakers Pride XX-12 Bakers Pride XX-4 Bakers Pride XX-6 Bakers Pride XX-8 Garland G24 Garland G24-15H Garland G24-15HFSD Garland G24-24G Garland G24-24GFSD Garland G24-24GTH Garland G24-24GTHX Garland G24-36G Garland G24-36GFSD Garland G24-36GTH Garland G24-36GTHX Garland G24-48G Garland G24-48GFSD Garland G24-48GTH Garland G24-48GTHX Garland G24-4L Garland G24-4S Garland G24-4T Garland G24-60G Garland G24-60GFSD Garland G24-60GTH Garland G24-60GTHX Garland G24-72G Garland G24-72GFSD Garland G24-72GTH Garland G24-72GTHX Garland G24-T Garland G36 Garland G36-6C Garland G36-6R Garland G36-6S Garland G36-6T Garland G36T Garland G48 Garland G48-8CS Garland G48-8LL Garland G48-8RS Garland G48-8SS Garland G48P Garland G48PA Garland G48PD Garland G48PS Garland G48PSA Garland G48PSD Garland G60 Garland G60-10CC Garland G60-10CR Garland G60-10CS Garland G60-10RR Garland G60-10RS Garland G60-10SS Garland G60-6R24CC Garland G60-6R24CR Garland G60-6R24CS Garland G60-6R24RR Garland G60-6R24RS Garland G60-6R24SS Garland GF24 Garland GF24-4L Garland GF24-4T Garland GF24-G24T Garland GF24-T Garland GF2G24T Garland GF36 Garland GF36-4G12T Garland GF36-6R Garland GF36-6T Garland GF36-G36T Garland GF36-T Garland GF36-TTR Garland GF48 Garland GF48-LL Garland GF60 Garland GF60-10RR Garland GF60-6R24RR Garland GF60-6R24RS Garland GFE24-4L Garland GFE36-6C Garland GFE36-6R Garland GFE36-TTC Garland GFE36-TTR Garland GFE48-LL Garland GFE60-10CC Garland GFE60-10RC Garland GFE60-10RR Garland GFE60-6R24CC Garland GFE60-6R24CS Garland GFE60-6R24RC Garland GFE60-6R24RR Garland GFE60-6R24RS Garland H/P-280 Garland H280 Garland H283 Garland H284 Garland H285
Showing of 100.0

BAKERS PRIDE:

R3043X

DYNAMIC COOKING SYSTEMS:

13005-47

GARLAND:

1020847 223242-47 M8-47

GLASS MAID:

8-47

HOBART:

00-719951-00047 719951-00047 719951-47

ROYAL RANGE:

1122-47

SOUTHBEND:

1006447 1008747

STAR MFG:

Y7216

VULCAN HART:

00-719951-00047 719951-00047 719951-47

Step1: Turn off gas/electric supply and allow system to cool.

Step2: Remove access panel and locate existing orifice assembly.

Step3: Unscrew old orifice using proper tool carefully.

Step4: Install new orifice, ensure proper alignment and threading.

Step5: Tighten securely without over-torquing.

Step6: Restore supply and check for leaks using soapy water.

Step7: Test operation, ensure stable flame and proper combustion.

  • What maintenance is required for the Star 2J-Y7216 Orifice?

    Clean the orifice regularly to prevent carbon buildup and ensure consistent gas flow. Inspect for clogging or debris during regular service. Use proper tools and shut off gas supply before maintenance to ensure safety.

  • What are common issues with the Star 2J-Y7216 Orifice?

    • Uneven or weak flame output.
    • Gas flow restriction or inconsistency.
    • Wear or erosion of orifice opening.
    • Improper fitting causing leaks or misalignment.
