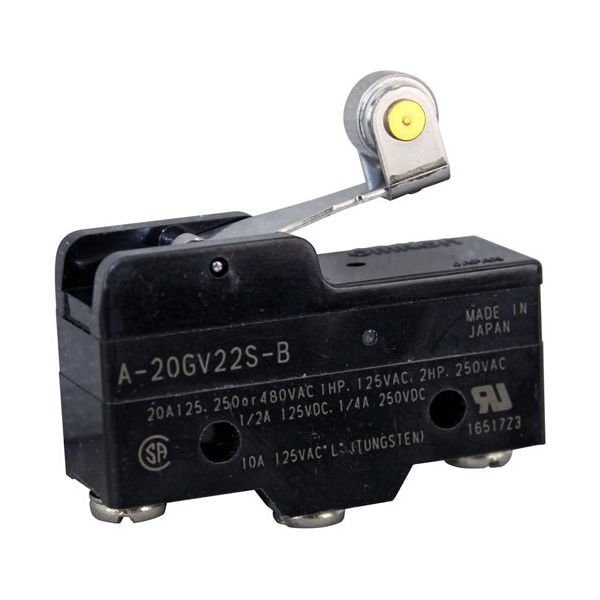

main product photo

Champion 501382 Roller Lever Microswitch W/1" MT Centers 20 AMP 125/250/480V

Rating:
5 5 1
1  Review Add Your Review
Special Price $30.69 Regular Price $52.10
In stock
SKU
501382
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Champion 501382 Roller Lever Microswitch is used in commercial cooking parts where position sensing is needed. It is mounted on 1-inch centers and has a roller lever that is activated when it is touched by a moving part. Its 20-amp rating in 125 to 480 volts allows a great variety of electrical configurations. This microswitch is used in the control system of the equipment to indicate the operational state, assist in the coordination of the cycles, facilitate safety interlocks, and aid in the correct reaction of the equipment.

Dimensions

  • Length: 2 In
  • Width: 0.6 In
  • Height: 1.6 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/c/h/champion-501382-roller-lever-microswitch-w-1-mt-centers-20-amp-125-250-480v-63587-2.jpg

Product Notes

  • Roller Lever Microswitch
  • 20 Amp, 125/250/480V, 1" Mt Ctrs
  • Cleveland Steam Pro
  • Franklin Chef Oven Series: Ghch, Ghcv, Ghsv, Gsch.
  • Frymaster Fryer All Units W/Auto Basket Lift
  • Including Spaghetti Magic.
  • Garland Oven Series: S/N 39369 & Before: Te, Tg, Tte, Ttg.
  • Fryer E18F
  • Pitco Fryer Where Applicable, All W/Basket Lifts.
CHAMPION:
DUKE:
148077, DUK148077
MAGIKITCH'N:
STAR MFG:
Reviews 1
Write Your Own Review
You're reviewing:Champion 501382 Roller Lever Microswitch W/1" MT Centers 20 AMP 125/250/480V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Champion 501382 Roller Lever Microswitch?

Inspect the lever and contacts for wear or debris. Ensure wiring is tight and terminals are clean. Test operation periodically, and always disconnect power before servicing.

What are common issues with the Champion 501382 Roller Lever Microswitch?

  • Contacts fail to connect.
  • Lever binding or sticking.
  • Loose or corroded terminals.
  • Intermittent operation under load.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off all power to the appliance before starting.

Step2: Remove the old microswitch by loosening mounting screws.

Step3: Carefully disconnect wires, noting their positions.

Step4: Attach wires to the corresponding terminals on the microswitch.

Step5: Secure the new microswitch in place with screws.

Step6: Ensure the roller lever moves freely without obstruction.

Step7: Restore power and test the switch to confirm proper operation.
