Duke 148077 Convection Oven Door Microswitch 20 AMP 125/250/480V

SKU: 148077 1-148077 Brand:
Duke
Availability:
In Stock
(2)
$40.12 Price reduced from $52.10
Save $11.98
Have a Question? +1 (866) 863-0907

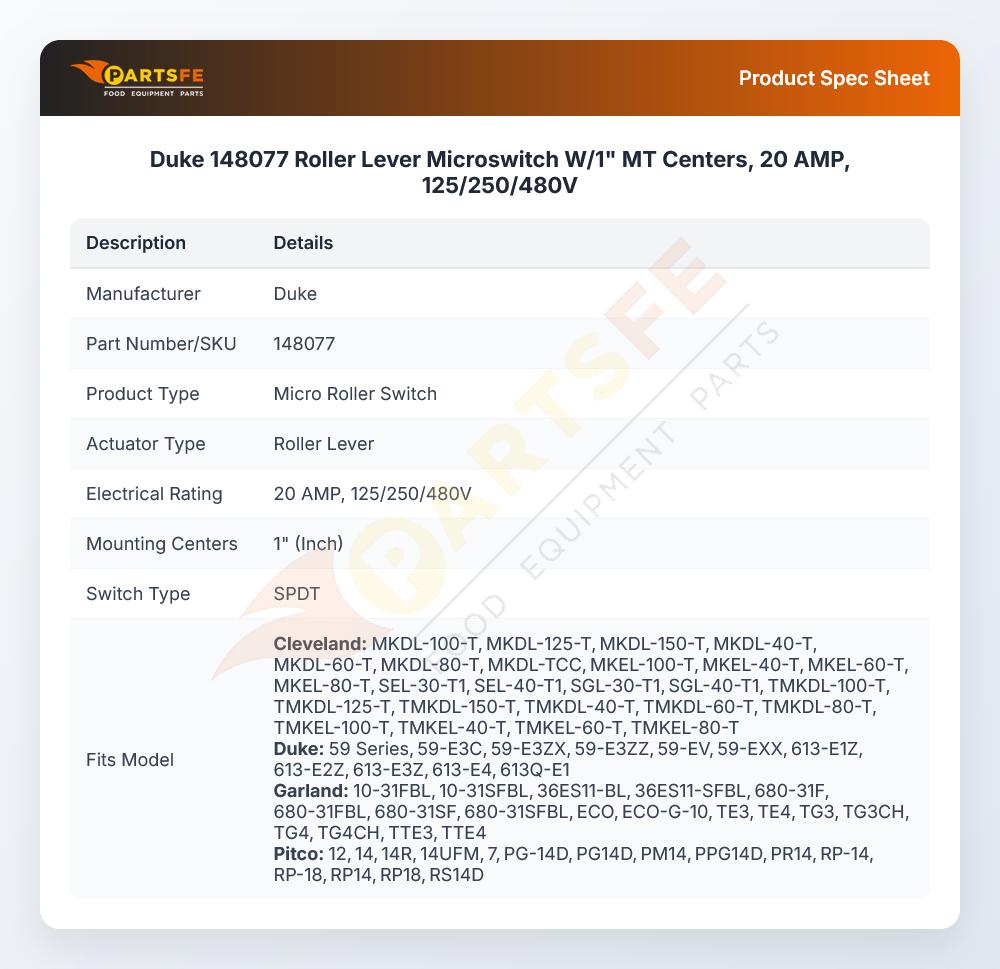

Specifications:

  • Roller Lever Microswitch
  • 20 Amp, 125/250/480V, 1" Mt Ctrs
  • Cleveland Steam Pro
  • Franklin Chef Oven Series: Ghch, Ghcv, Ghsv, Gsch.
  • Frymaster Fryer All Units W/Auto Basket Lift
  • Including Spaghetti Magic.
  • Garland Oven Series: S/N 39369 & Before: Te, Tg, Tte, Ttg.
  • Fryer E18F
  • Pitco Fryer Where Applicable, All W/Basket Lifts.

Description

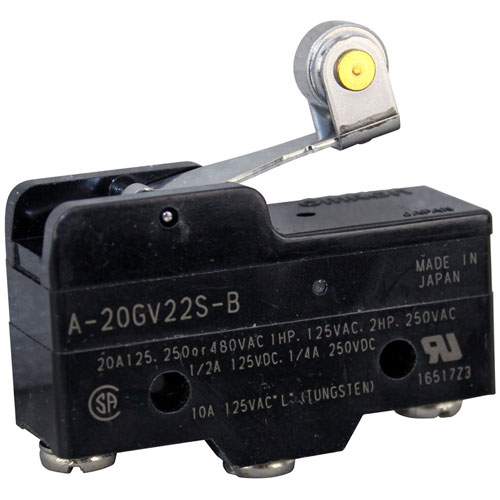

The Duke 148077 Door Microswitch is a control switch that is used in compatible convection ovens to measure mechanical movement or door position. It has mounting centers and a roller lever actuator that will react to the movement of the parts in the oven assembly. This switch is rated at 20 amps at 125, 250, or 480 volts and is usually used in commercial kitchen equipment. It feeds the control circuit within the oven system to aid in the safe operation of the system.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1.6 in
  • Width: 0.6 in

CHAMPION:

0501382 501382

CLEVELAND:

104403 2474500 SK2474500

DUKE:

DUK148077

GARLAND:

1019602 G01137 GL1019602 GLG01137

MAGIKITCH'N:

P5047169

PITCO:

P5047169 P5047171 PTP5047169 PTP5047171

STAR MFG:

2E-8456 8456

Step1: Turn off power to the appliance.

Step2: Remove the cover or panel to access the old microswitch.

Step3: Disconnect the wires carefully from the old switch.

Step4: Position the new microswitch so the roller lever contacts the actuator correctly.

Step5: Secure the switch with screws or mounting clips provided.

Step6: Reconnect the wiring according to the original configuration.

Step7: Test the mechanism by moving the actuator to ensure the switch triggers accurately.

  • What maintenance is required for the Duke 148077 Roller Lever Microswitch?

    Regularly inspect the switch for dust, debris, or corrosion. Test the lever action to ensure smooth movement and clean the contacts if needed. Proper maintenance ensures accurate switching and prevents operational failures. Always disconnect power before servicing.

  • What are the common issues with the Duke 148077 Roller Lever Microswitch?

    • Lever sticking or not returning properly.
    • Intermittent electrical contact.
    • Worn or damaged internal contacts.
    • Failure to trigger the equipment accuracy.
