Garland G01137 Fryer Roller Lever Microswitch W/1" MT Centers 20 AMP 125/250/480V

SKU: G01137 1-G01137 Brand:
Garland
Availability:
In Stock
(0)
$40.12 Price reduced from $52.10
Save $11.98
Have a Question? +1 (866) 863-0907

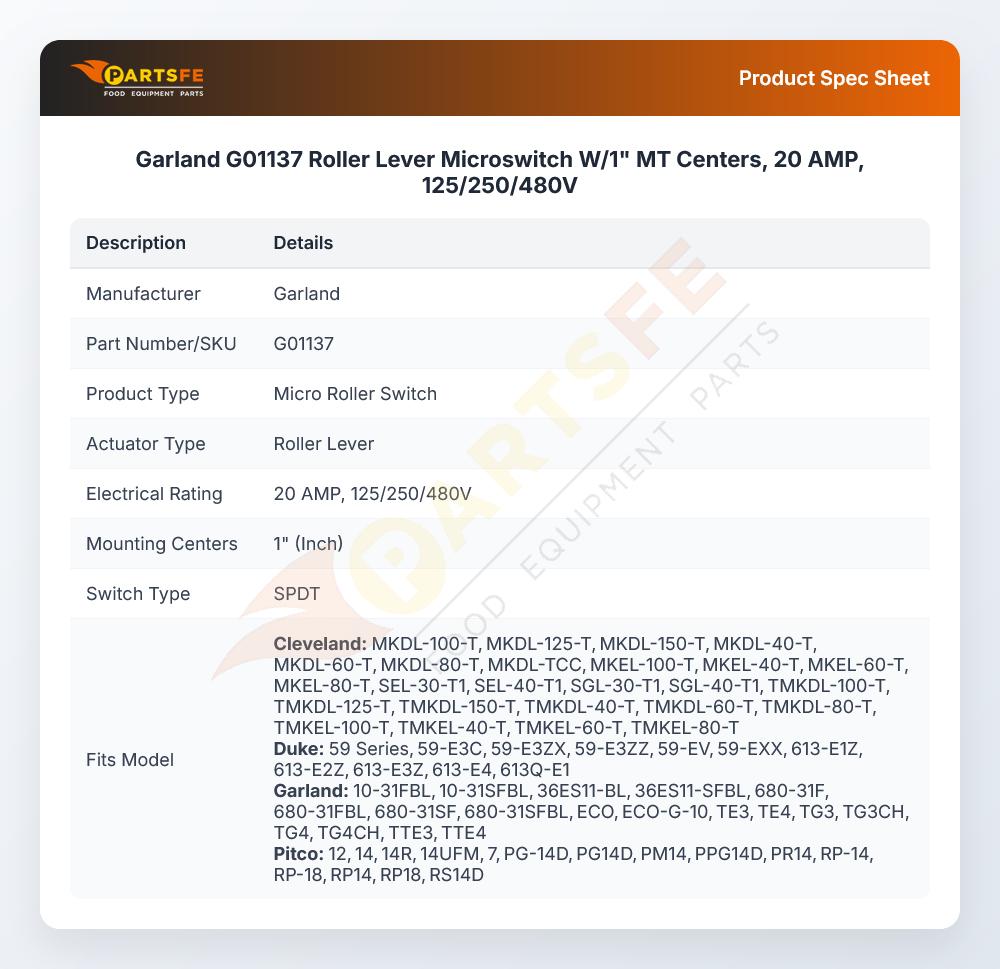

Specifications:

  • Roller Lever Microswitch
  • 20 Amp, 125/250/480V, 1" Mt Ctrs
  • Cleveland Steam Pro
  • Franklin Chef Oven Series: Ghch, Ghcv, Ghsv, Gsch.
  • Frymaster Fryer All Units W/Auto Basket Lift
  • Including Spaghetti Magic.
  • Garland Oven Series: S/N 39369 & Before: Te, Tg, Tte, Ttg.
  • Fryer E18F
  • Pitco Fryer Where Applicable, All W/Basket Lifts.

Description

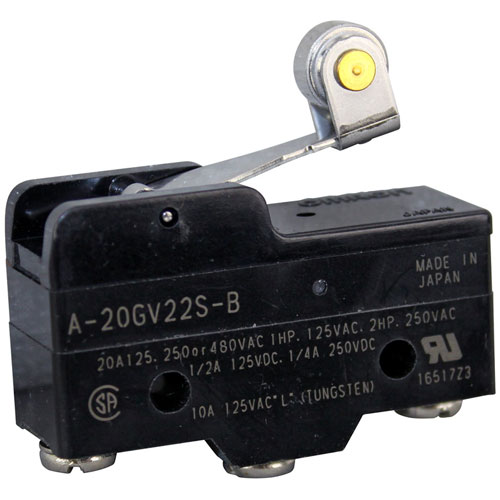

The Garland G01137 Roller Lever Microswitch is a control component that is installed in compatible Garland commercial fryers to sense mechanical motion or change of position. It is mounted with 1" centers and has a roller lever, which is connected when it is touched by moving components of the fryer assembly. It is rated at 20 amps at 125 to 480 volts and can be used in a variety of electrical configurations used in food service equipment. This is part of the control system, and it feeds input signals that aid in the control of the operational states.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1.6 in
  • Width: 0.6 in

CHAMPION:

0501382 501382

CLEVELAND:

104403 2474500 SK2474500

DUKE:

148077 DUK148077

GARLAND:

1019602 GL1019602 GLG01137

MAGIKITCH'N:

P5047169

PITCO:

P5047169 P5047171 PTP5047169 PTP5047171

STAR MFG:

2E-8456 8456

Step1: Shut off power to the appliance.

Step2: Access the switch mounting area near moving components.

Step3: Unscrew the microswitch and disconnect wiring.

Step4: Mount the new switch in the same position.

Step5: Adjust the roller lever to align with the actuator.

Step6: Reconnect wiring and test for proper triggering.

  • What maintenance is required for the Garland G01137 Roller Lever Microswitch?

    Check the microswitch for smooth lever movement and consistent activation. Clean around the lever to remove debris or grease. Inspect terminals for secure connections. Proper maintenance ensures accurate signal switching and prevents intermittent faults.

  • What are common issues with the Garland G01137 Roller Lever Microswitch?

    • Lever sticking due to debris.
    • Intermittent contact from loose wiring.
    • Microswitch failing to activate.
    • Electrical arcing under load.
