Champion 501382 Roller Lever Microswitch W/1" MT Centers 20 AMP 125/250/480V

SKU: 501382 1-501382 Brand:
Champion
Availability:
In Stock
(1)
$40.12 Price reduced from $52.10
Save $11.98
Have a Question? +1 (866) 863-0907

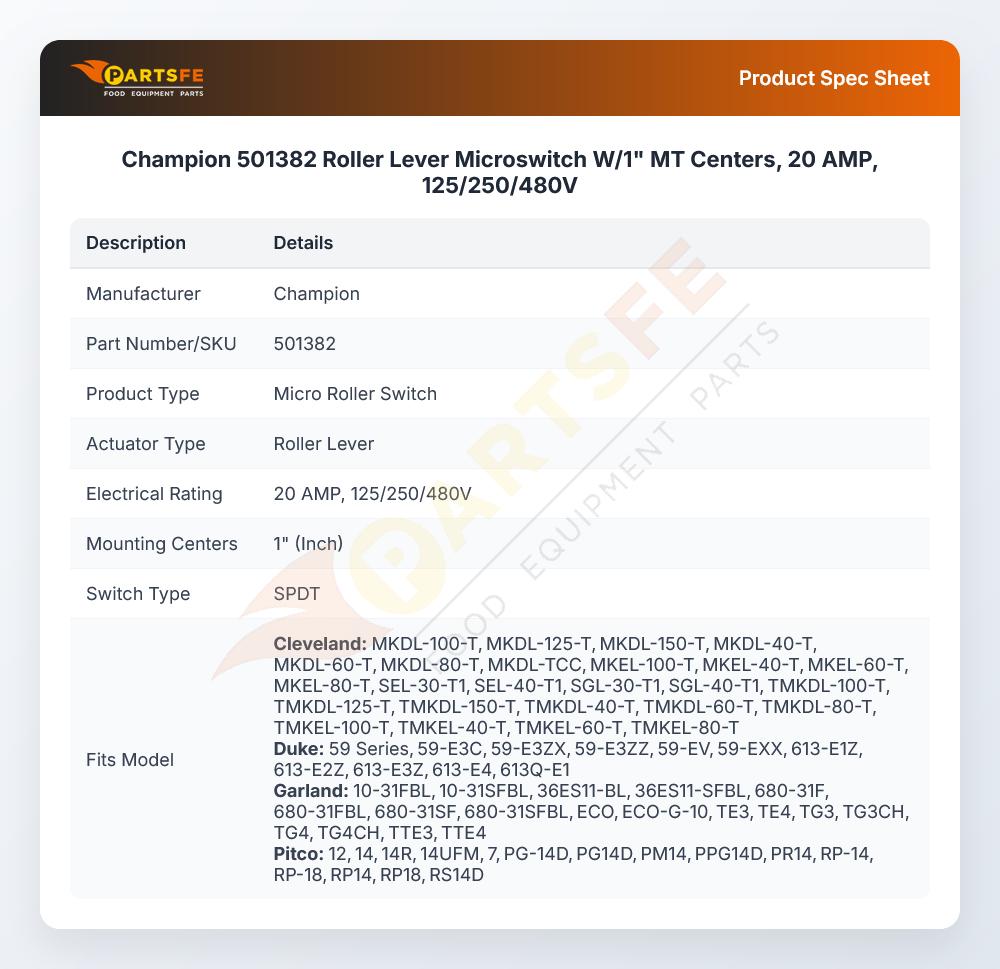

Specifications:

  • Roller Lever Microswitch
  • 20 Amp, 125/250/480V, 1" Mt Ctrs
  • Cleveland Steam Pro
  • Franklin Chef Oven Series: Ghch, Ghcv, Ghsv, Gsch.
  • Frymaster Fryer All Units W/Auto Basket Lift
  • Including Spaghetti Magic.
  • Garland Oven Series: S/N 39369 & Before: Te, Tg, Tte, Ttg.
  • Fryer E18F
  • Pitco Fryer Where Applicable, All W/Basket Lifts.

Description

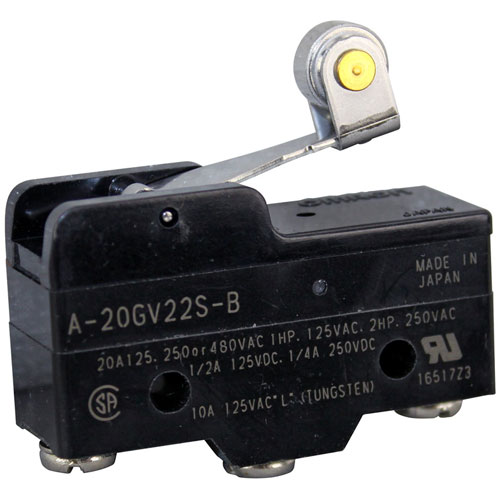

The Champion 501382 Roller Lever Microswitch is used in commercial cooking parts where position sensing is needed. It is mounted on 1-inch centers and has a roller lever that is activated when it is touched by a moving part. Its 20-amp rating in 125 to 480 volts allows a great variety of electrical configurations. This microswitch is used in the control system of the equipment to indicate the operational state, assist in the coordination of the cycles, facilitate safety interlocks, and aid in the correct reaction of the equipment.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1.6 in
  • Width: 0.6 in

CHAMPION:

0501382

CLEVELAND:

104403 2474500 SK2474500

DUKE:

148077 DUK148077

GARLAND:

1019602 G01137 GL1019602 GLG01137

MAGIKITCH'N:

P5047169

PITCO:

P5047169 P5047171 PTP5047169 PTP5047171

STAR MFG:

2E-8456 8456

Step1: Turn off all power to the appliance before starting.

Step2: Remove the old microswitch by loosening mounting screws.

Step3: Carefully disconnect wires, noting their positions.

Step4: Attach wires to the corresponding terminals on the microswitch.

Step5: Secure the new microswitch in place with screws.

Step6: Ensure the roller lever moves freely without obstruction.

Step7: Restore power and test the switch to confirm proper operation.

  • What maintenance is required for the Champion 501382 Roller Lever Microswitch?

    Inspect the lever and contacts for wear or debris. Ensure wiring is tight and terminals are clean. Test operation periodically, and always disconnect power before servicing.

  • What are common issues with the Champion 501382 Roller Lever Microswitch?

    • Contacts fail to connect.
    • Lever binding or sticking.
    • Loose or corroded terminals.
    • Intermittent operation under load.
