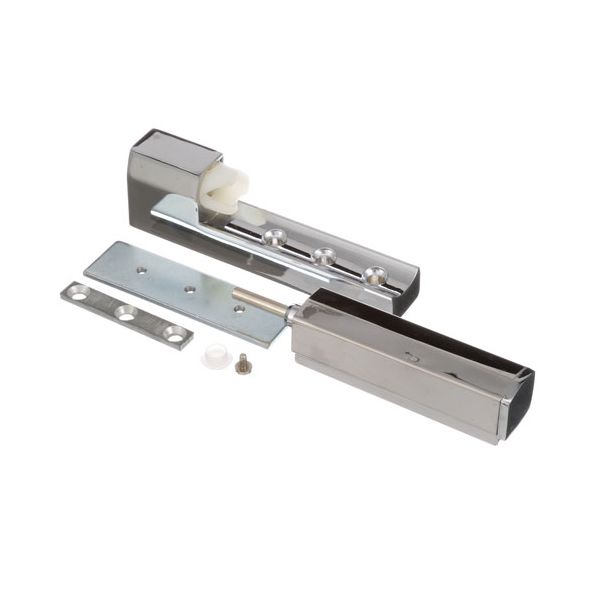

Victory VT10685101 Hinge Assembly

Be the first to review this product
Special Price $103.66 Regular Price $195.22
In stock
SKU
VT10685101
Add to Wish List
Electrical & Hardware, Hinge Parts, Shop by manufacturers
Manufacturer:
The Victory VT10685101 Hinge Assembly is used to attach a door to a cabinet frame so that it can pivot at specified points and support the weight of a door. The motion is regulated by brackets and a central hinge mechanism so that the door does not swing without being even. It is mounted on the side of refrigeration or storage unit doors, where it is installed so as to fit well with the cabinet and operate easily. The assembly allows the door to be held firmly, and the opening and closing action remains constant with time.

Dimensions

  • Length: 6 In
  • Width: 2 In
  • Height: 1.5 In
  • Weight: 1.08 lbs
https://partsfe.com/media/catalog/product/v/i/victory-vt10685101-hinge-assembly-65225.jpg
BAKERS AID:
CHG:
CHGR50-2850, R50-2850
FOGEL:
FRANKLIN CHEF:
HOBART:
01-3PB045, HOB01-3PB045
STANDARD KEIL:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Victory VT10685101 Hinge Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Victory VT10685101 Hinge Assembly?

Lubricate hinge pivot points and inspect screws for tightness. Check alignment and movement to ensure efficient door operation and prevent uneven damage or binding.

What are common issues with the Victory VT10685101 Hinge Assembly?

  • Door sagging or misalignment.
  • Noisy or stiff movement.
  • Loose screws reducing stability.
  • Metal wear or deformation.
  • Hinge binding during repeated use.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Open the door and support it securely.

Step2: Remove screws holding the old hinge and take it off.

Step3: Align the new hinge assembly and attach it with screws.

Step4: Check door alignment and adjust if needed.

Step5: Open and close the door to ensure smooth movement.
