Vulcan Hart 00-404060-00001 Range Air Shutter

SKU: 00-404060-00001 1-00-404060-00001 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$8.74 Price reduced from $9.33
Save $0.59
Have a Question? +1 (866) 863-0907

Specifications:

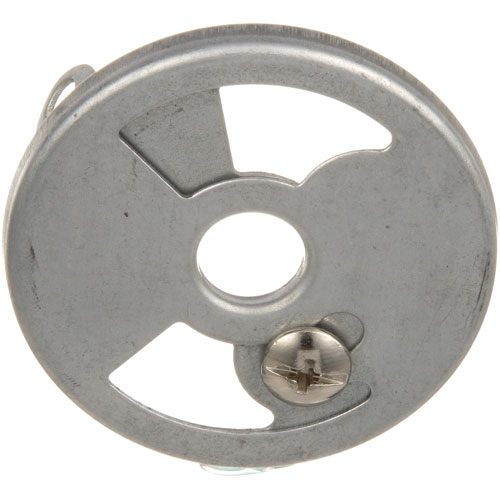

  • Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
  • 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
  • For Cast Iron Burner.
  • Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
  • Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
  • Grill 2436, 2436T, 2472, 2472T, Grizzly G.
  • Range 136-5, 136-559~
  • Series:
  • Vulcan
  • Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
  • (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
  • Range 7830.
  • Wolf Oven

Description

The Vulcan Hart 00-404060-00001 Range Air Shutter is a regulator of the air-to-gas mixture by adjusting an opening that regulates the amount of air that flows in during the burning of the fuel. Through the rotation or placement of the shutter, the flame properties are adjusted by means of a controlled air intake that facilitates a stable ignition and a stable flame shape. This is a component that is mounted at the burner air intake on compatible ranges and is placed between the gas orifice and the burner venturi. It is fitted to fit with the prevailing burner assemblies and also to communicate.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 0.81 in
  • Height: 0.12 in
  • Width: 0.81 in

ANETS:

-P9300-10 P9300-10

COMSTOCK CASTLE:

-16000 -25 16000 25

HOBART:

00-719241 104060-1 19241 404060-00001 404060-1 719241

MAGIKITCH'N:

-30-05-00395 -30-05-00395-A -3005-0039500 -300500395 -300500395A

MONTAGUE:

-02038-9 -2038-9 -B-26 -B26 -G-11 -G11 -R-26 -R26 02038-9 2038-9 B-26 B26 G-11 G11 MON2038-9 MONB26 MONG11 MONR26 R-26 R26

PITCO:

-P9300-10 P9300-10

SOUTHBEND:

-1127299 1127299

VULCAN HART:

-00-404060-00001 -00-719241 -104060-1 -19241 -404060-00001 -404060-1 -719241 00-719241 104060-1 19241 404060-00001 404060-1 6470 719241 806470 VH104060-1 VH404060-1 VH6470 VH806470
