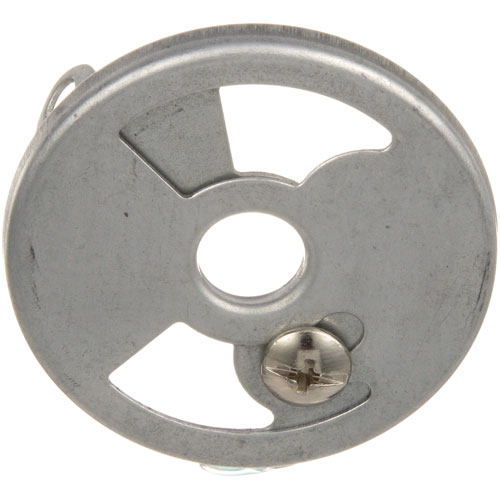

Montague MONG11 Air Shutter Twin Plate 2 Slots

SKU: MONG11 1-MONG11 Brand:
Montague
Availability:
In Stock
(0)
$8.74 Price reduced from $9.33
Save $0.59
Have a Question? +1 (866) 863-0907

Specifications:

  • Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
  • 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
  • For Cast Iron Burner.
  • Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
  • Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
  • Grill 2436, 2436T, 2472, 2472T, Grizzly G.
  • Range 136-5, 136-559~
  • Series:
  • Vulcan
  • Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
  • (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
  • Range 7830.
  • Wolf Oven

Description

The Montague MONG11 Air Shutter Twin Plate 2 Slots is used to control the flow of air by using two adjustable holes to provide controlled ventilation in enclosed areas. The slots may be separated to direct the flow in the required direction independently of each other, and balance the air distribution. This unit is designed to be mounted on the wall or ceiling and is flush with the surface provide the unit a streamlined look and blending well with existing duct work or ventilation systems. It has a twin-slot design that allows two air streams to be controlled simultaneously.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 0.81 in
  • Height: 0.12 in
  • Width: 0.81 in

ANETS:

-P9300-10 P9300-10

COMSTOCK CASTLE:

-16000 -25 16000 25

HOBART:

00-404060-00001 00-719241 104060-1 19241 404060-00001 404060-1 719241

MAGIKITCH'N:

-30-05-00395 -30-05-00395-A -3005-0039500 -300500395 -300500395A

MONTAGUE:

-02038-9 -2038-9 -B-26 -B26 -G-11 -G11 -R-26 -R26 02038-9 2038-9 B-26 B26 G-11 G11 MON2038-9 MONB26 MONR26 R-26 R26

PITCO:

-P9300-10 P9300-10

SOUTHBEND:

-1127299 1127299

VULCAN HART:

-00-404060-00001 -00-719241 -104060-1 -19241 -404060-00001 -404060-1 -719241 00-404060-00001 00-719241 104060-1 19241 404060-00001 404060-1 6470 719241 806470 VH104060-1 VH404060-1 VH6470 VH806470

Step1: Turn off gas supply and allow burner to cool completely before servicing.

Step2: Remove existing air shutter assembly from burner tube using appropriate screwdriver.

Step3: Align new twin plate air shutter onto burner and secure mounting screws.

Step4: Set initial air gap for proper flame and ensure orifice alignment is unobstructed.

Step5: Restore gas, test ignition, and adjust air mix for stable blue flame.

  • What maintenance is required for the Montague MONG11 Burner Twin Plate Air Shutter?

    Clean the burner assembly regularly to remove grease, dust, and carbon deposits. Inspect the air shutter openings to ensure they are not obstructed. Check for proper alignment and secure all connections to maintain stable combustion. regular maintenance supports efficient burner performance and better operation.

  • What are common issues with the Montague MONG11 Burner Twin Plate Air Shutter?

    • Inconsistent flame caused by dirty burner ports.
    • Delayed ignition from clogged orifice opening.
    • Excess soot due to incorrect air-to-gas ratio.
    • Reduced heating efficiency from air shutter blockage.
