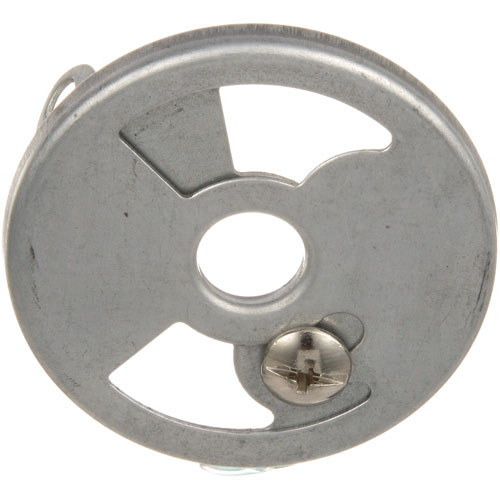

Southbend 1127299 Air Shutter Assembly Burner Twin Plate 2 Slots
Specifications:
- Air Shutter, Twin Plate, 2 Slots, .463" Orifice Hole, Fits
- 2.092" Dia Burner, W/ Locking Ears, 2-1/4"Od Air Shutter
- For Cast Iron Burner.
- Magikitch'N Charbroiler Series Dmc, Fm-Smb, Smb, Smb-Apm
- Montague Broiler Ufc, Ufsc, Ufscc, Ufsmc (24 To 72, >10/91
- Grill 2436, 2436T, 2472, 2472T, Grizzly G.
- Range 136-5, 136-559~
- Series:
- Vulcan
- Broiler Hcb1 (Old Cb-1L), Hcb2 (Old Cb-2L), Hcb44
- (Old7844L), Hcbo40 (Old 7840Al), M7806, M7809, Series: Hgb.
- Range 7830.
- Wolf Oven
Description
Dimensions:
- Weight: 0.15 lbs
- Length: 0.81 in
- Height: 0.12 in
- Width: 0.81 in
ANETS:
-P9300-10 P9300-10
MAGIKITCH'N:
-30-05-00395 -30-05-00395-A -3005-0039500 -300500395 -300500395A
MONTAGUE:
-02038-9 -2038-9 -B-26 -B26 -G-11 -G11 -R-26 -R26 02038-9 2038-9 B-26 B26 G-11 G11 MON2038-9 MONB26 MONG11 MONR26 R-26 R26
PITCO:
-P9300-10 P9300-10
SOUTHBEND:
-1127299
VULCAN HART:
-00-404060-00001 -00-719241 -104060-1 -19241 -404060-00001 -404060-1 -719241 00-404060-00001 00-719241 104060-1 19241 404060-00001 404060-1 6470 719241 806470 VH104060-1 VH404060-1 VH6470 VH806470
Step1: Turn off gas and power, allow burner to cool completely before starting installation.
Step2: Remove existing burner air shutter and clean mounting surface to ensure proper fit.
Step3: Position new air shutter on burner with correct alignment over orifice and secure using original fasteners.
Step4: Adjust air slots to manufacturer specification for proper combustion and tighten securely.
Step5: Restore gas, check for leaks and ignite burner, verifying stable flame.
-
What maintenance is required for the Southbend 1127299 Burner Twin Plate Air Shutter?
Regularly inspect the air shutter for grease buildup or debris and clean it to maintain proper airflow. Ensure the slots and orifice hole remain unobstructed. Tighten fittings if loose and check alignment. Always turn off gas supply before servicing.
-
What are common issues with the Southbend 1127299 Burner Twin Plate Air Shutter?
- Blocked air slots restricting airflow
- Improper air-to-gas mixture causing yellow flames.
- Misalignment affecting burner efficiency.
- Orifice hole clogging or damage.
- Loose or worn mounting components.
