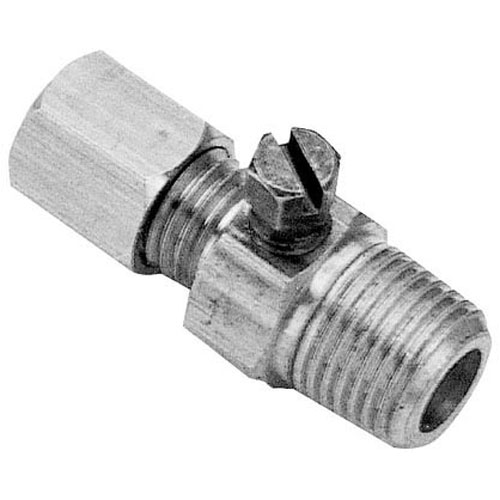

ROYAL RANGE 1002 Range Flange Nut 1/8" MPT X 3/16" CCT

SKU: 1002 1-1002 Brand:
ROYAL RANGE
Availability:
In Stock
(0)
$7.52
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] ] [Width 1-1/8"],
  • Straight, Adjustable
  • American Range
  • Bakers Pride Broiler Ch10. Series: 50, Gg, Xx.
  • Dynamic Cooking Systems Broiler Cheesemelter, Salamander.
  • Garland Oven 60/40R, Stw286 & Where Applicable.
  • Griddle Series: Gd
  • Imperial Broiler Eba-3223. Series: Gd, Icb, Icma, Isb, Msq.
  • Grill Series: Imga, Itg.
  • Range Series: Icra, Isp-J, Ispa.
  • Wolf Broiler Cmss Cheesemelter, Fshb & Hbss
  • (Old F & Fs-855), Scb.
  • Grill Gg, Stg.

Description

The ROYAL RANGE 1002 Range Flange Nut 1/8" MPT X 3/16" CCT regulates the flow of gas in the pilot assembly by enabling it to be manually adjusted with its threaded connection and internal metering passage. By rotating the adjustment nut the opening that controls the flow of fuel gas is adjusted, allowing ignition and settling of the flame during operation. The valve has a 1/8 inlet with a 1/8 inlet pipe made of MPT and a 3/16 CCT outlet to fit standard pilot tubing. Its design can allow steady operation of pilots in gas appliances and range.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.5 in
  • Height: 1.5 in
  • Width: 0.75 in

AMERICAN RANGE:

10436 A29302 AMRA29302

ANETS:

ANEP8901-79 P8901-79

APW WYOTT:

2065614

BAKERS PRIDE:

2V-R3021A BKPR3021A R3021A R3021X

DUKE:

3505 3505-2 DUK3505 DUK3505-2

DYNAMIC COOKING SYSTEMS:

13029-2 DCS13029-2

GARLAND:

1086597 1086599 1150092 227199 GL1086597

HOBART:

00-404738-00002 104738-2 19189 404738-00002 404738-2 719189

IMPERIAL:

1607 IMP1607

ROYAL RANGE:

1120

VULCAN HART:

00-404738-00002 00-719189 104738-2 19189 404738-00002 404738-2 719189 VH404738-2

Step1: Shut off system and release internal pressure completely.

Step2: Inspect valve and all fittings for damage or debris.

Step3: Apply thread sealant to male ports evenly.

Step4: Align and hand-tighten valve into the line securely.

Step5: Secure using wrench, avoid over-tightening to prevent leaks.

Step6: Connect tubing firmly and check fit.

Step7: Restore pressure slowly and test system for leaks safely carefully.

  • What maintenance is required for the ROYAL RANGE 1002 Adjustment Pilot Valve?

    Inspect the valve regularly for leaks, wear, or buildup that may affect gas regulation. Clean the adjustment mechanism carefully and ensure all connections are tight. Routine servicing can maintain accurate flame adjustment and ensure better efficient burner operation.

  • What are common issues with the ROYAL RANGE 1002 Adjustment Pilot Valve?

    • Gas leaks at threaded connections.
    • Difficulty adjusting flame control.
    • Internal clogging affecting flow consistency.
    • Wear or loosening of adjustment components.
