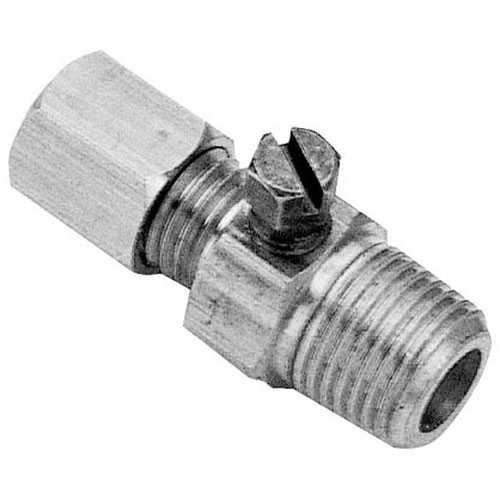

Garland 1086599 Pilot Valve 1/8" MPT X 3/16" CCT

SKU: 1086599 1-1086599 Brand:
Garland
Availability:
In Stock
(0)
$7.52
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] ] [Width 1-1/8"],
  • Straight, Adjustable
  • American Range
  • Bakers Pride Broiler Ch10. Series: 50, Gg, Xx.
  • Dynamic Cooking Systems Broiler Cheesemelter, Salamander.
  • Garland Oven 60/40R, Stw286 & Where Applicable.
  • Griddle Series: Gd
  • Imperial Broiler Eba-3223. Series: Gd, Icb, Icma, Isb, Msq.
  • Grill Series: Imga, Itg.
  • Range Series: Icra, Isp-J, Ispa.
  • Wolf Broiler Cmss Cheesemelter, Fshb & Hbss
  • (Old F & Fs-855), Scb.
  • Grill Gg, Stg.

Description

The Garland 1086599 Pilot Valve is used to control the flow of gas to the pilot burner by its internal valve mechanism. This is a part that is fitted into the gas control unit of commercial cooking equipment, usually between the gas supply and the pilot tubing. It has a 1/8" MPT inlet and a 3/16" CCT outlet to allow proper routing of gases in ranges, ovens, and other appliances that need ignition operation to use normal heating operations.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.5 in
  • Height: 1.5 in
  • Width: 0.75 in

AMERICAN RANGE:

10436 A29302 AMRA29302

ANETS:

ANEP8901-79 P8901-79

APW WYOTT:

2065614

BAKERS PRIDE:

2V-R3021A BKPR3021A R3021A R3021X

DUKE:

3505 3505-2 DUK3505 DUK3505-2

DYNAMIC COOKING SYSTEMS:

13029-2 DCS13029-2

GARLAND:

1086597 1150092 227199 GL1086597

HOBART:

00-404738-00002 104738-2 19189 404738-00002 404738-2 719189

IMPERIAL:

1607 IMP1607

ROYAL RANGE:

1002 1120

VULCAN HART:

00-404738-00002 00-719189 104738-2 19189 404738-00002 404738-2 719189 VH404738-2

Step1: Shut off gas supply and ensure the appliance is completely cool and secure.

Step2: Remove the existing pilot valve from the assembly carefully.

Step3: Clean the mounting area and check for debris or damage.

Step4: Install the new adjustment pilot valve and align it properly.

Step5: Tighten all connections securely without over-tightening.

Step6: Turn on gas supply and test pilot flame adjustment and stability.
