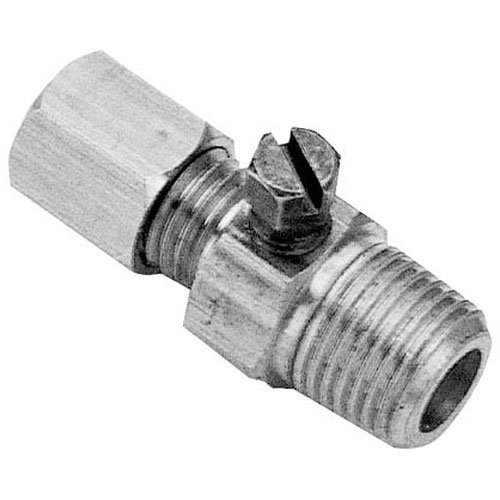

American Range 10436 Adjustment Pilot Valve 1/8" MPT X 3/16" CCT

SKU: 10436 1-10436 Brand:
American Range
Availability:
In Stock
(0)
$7.52
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Adjustment Valve
  • [ 1/8" Mpt X 3/16" Cct ] ] [Width 1-1/8"],
  • Straight, Adjustable
  • American Range
  • Bakers Pride Broiler Ch10. Series: 50, Gg, Xx.
  • Dynamic Cooking Systems Broiler Cheesemelter, Salamander.
  • Garland Oven 60/40R, Stw286 & Where Applicable.
  • Griddle Series: Gd
  • Imperial Broiler Eba-3223. Series: Gd, Icb, Icma, Isb, Msq.
  • Grill Series: Imga, Itg.
  • Range Series: Icra, Isp-J, Ispa.
  • Wolf Broiler Cmss Cheesemelter, Fshb & Hbss
  • (Old F & Fs-855), Scb.
  • Grill Gg, Stg.

Description

The American Range 10436 Adjustment Pilot Valve 1/8"MPT X 3/16" CCT adjusts the gas flow to the pilot assembly by adjusting pressure using a variable inner mechanism. It permits the initial flame to be fine-tuned by adjusting the amount of volume of gas flowing through the inlet and outlet connections. It is actually fitted in the gas control system, usually between the line of gas supply and the ignition burner. This is applied in commercial cooking appliances to aid in consistent operations in the pilot and standby modes, which enhances the controlled flame output and adequate interplay of connected burners.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.5 in
  • Height: 1.5 in
  • Width: 0.75 in

AMERICAN RANGE:

A29302 AMRA29302

ANETS:

ANEP8901-79 P8901-79

APW WYOTT:

2065614

BAKERS PRIDE:

2V-R3021A BKPR3021A R3021A R3021X

DUKE:

3505 3505-2 DUK3505 DUK3505-2

DYNAMIC COOKING SYSTEMS:

13029-2 DCS13029-2

GARLAND:

1086597 1086599 1150092 227199 GL1086597

HOBART:

00-404738-00002 104738-2 19189 404738-00002 404738-2 719189

IMPERIAL:

1607 IMP1607

ROYAL RANGE:

1002 1120

VULCAN HART:

00-404738-00002 00-719189 104738-2 19189 404738-00002 404738-2 719189 VH404738-2

Step1: Turn off gas supply and power; allow system to cool completely.

Step2: Remove old pilot valve from connection safely using proper wrench.

Step3: Clean threads and inspect tubing for damage.

Step4: Install new valve, align connections, tighten securely.

Step5: Restore gas, check for leaks with approved solution.

Step6: Test pilot flame adjustment and ensure stable ignition

  • What maintenance is required for the American Range 10436 Adjustment Pilot Valve?

    Inspect the pilot valve regularly for smooth adjustment and secure gas connections. Keep the valve clean and free from grease or debris that may restrict flow. Check for leaks during servicing. Ensure proper calibration for stable pilot flame control and safe operation.

  • What are common issues with the American Range 10436 Adjustment Pilot Valve?

    • Pilot flame difficult to adjust.
    • Gas flow inconsistency.
    • Valve leakage at fittings.
    • Unstable pilot flame.
    • Adjustment knob stiffness or failure.
