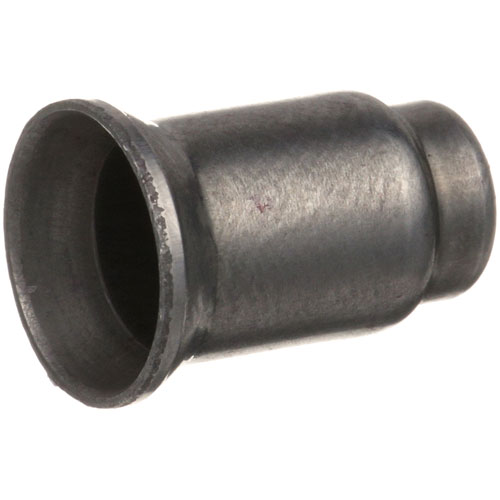

Garland 1093316 Pilot Orifice LP Gas 0.016"

SKU: 1093316 1-1093316 Brand:
Garland
Availability:
In Stock
(0)
$9.14
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice, For 1/4" Pilots,
  • .016" Or #78 Hole,
  • .372" Dia X .530" Long
  • American Range Fryer
  • Blodgett Oven
  • Imperial Fryer Series If, Ihr, Ir

Description

The Garland 1093316 Pilot Orifice is a liquid propane element used to regulate the amount of gas directed to the pilot assembly of commercial cooking equipment. It controls fuel flow, maintaining a constant that allows continuous ignition during regular operation. This opening is usual for ranges and ovens and other similar items. It has an opening of 0.016" that is just big enough to fit in the LP gas applications that assist in the safe and intended operation of the equipment in the foodservice condition.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11107 A11109

BLODGETT:

20193

FRYMASTER:

2172 810-2400 8102400

HENNY PENNY:

32407

IMPERIAL:

1059

LANG:

2A-80401-09 80401-09

PITCO:

P6071665 PTP6071665

ROYAL RANGE:

3206

SOUTHBEND:

1054111

STAR MFG:

2A-80401-09

Step1: Shut off the gas supply and allow the appliance to cool completely.

Step2: Remove the pilot assembly to access the existing pilot orifice.

Step3: Unscrew the old pilot orifice carefully using the proper tool.

Step4: Clean the pilot tube and threaded connection to remove debris.

Step5: Install the new pilot orifice and tighten it securely without over-tightening.

Step6: Reassemble the pilot assembly, restore the gas supply, and test the pilot flame for proper operation.
