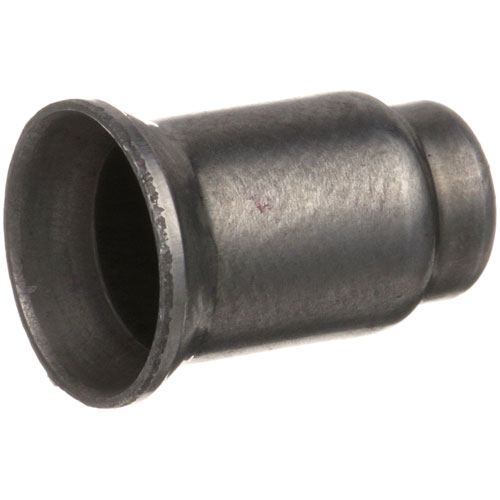

Pitco P6071665 Fryer LP Pilot Orifice 0.0160"

SKU: P6071665 1-P6071665 Brand:
Pitco
Availability:
In Stock
(0)
$9.14
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice, For 1/4" Pilots,
  • .016" Or #78 Hole,
  • .372" Dia X .530" Long
  • American Range Fryer
  • Blodgett Oven
  • Imperial Fryer Series If, Ihr, Ir

Description

The Pitco P6071665 Fryer LP Pilot Orifice 0.0160" controls the flow of liquid propane into the initial flame assembly by limiting the supply of gas through a fixed aperture of 0.0160 inches. This adjustable hole keeps the flame to the correct shape and maintains a consistent footprint and heat production to cover the thermocouple or thermopile. The component is firmly attached to the pipe connection, and it is placed in between the gas supply line and the heater head to allow ignition.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11107 A11109

BLODGETT:

20193

FRYMASTER:

2172 810-2400 8102400

GARLAND:

1093316

HENNY PENNY:

32407

IMPERIAL:

1059

LANG:

2A-80401-09 80401-09

PITCO:

PTP6071665

ROYAL RANGE:

3206

SOUTHBEND:

1054111

STAR MFG:

2A-80401-09

Step1: Turn off gas and electrical supply to the appliance to ensure safety before starting.

Step2: Close main gas valve and allow remaining gas to dissipate fully.

Step3: Remove pilot assembly cover and access the existing orifice carefully.

Step4: Unscrew old orifice using proper tool, avoiding damage to threads.

Step5: Install new orifice and tighten securely without over-tightening.

Step6: Reassemble pilot components and ensure correct alignment of parts.

Step7: Restore gas, perform leak test with solution, and relight carefully.

  • What maintenance is required for the Pitco P6071665 Pilot Orifice?

    Regularly inspect the pilot orifice for blockages, debris, or grease buildup and clean it carefully using compressed air or a soft brush. Ensure proper gas flow and alignment during reinstallation. Routine checks can maintain consistent ignition performance and prevent operational disruptions.

  • What are common issues with the Pitco P6071665 Pilot Orifice?

    • Clogging due to grease, dirt, or debris buildup.
    • Inconsistent or weak pilot flame.
    • Gas flow restriction causing ignition failure.
    • Misalignment affecting burner performance.
    • Wear or corrosion leading to improper orifice operation.
