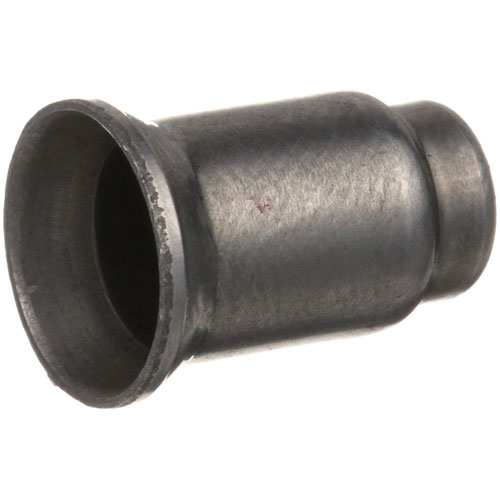

ROYAL RANGE 3206 Fryer Pilot Orifice Propane 1/4" 0.372" DIA X 0.530"L
Specifications:
- Lp Pilot Orifice, For 1/4" Pilots,
- .016" Or #78 Hole,
- .372" Dia X .530" Long
- American Range Fryer
- Blodgett Oven
- Imperial Fryer Series If, Ihr, Ir
Description
Dimensions:
- Weight: 0.01 lbs
- Length: 0.5 in
- Height: 0.5 in
- Width: 0.25 in
This pilot orifice is used in low-pressure gas pilot systems to regulate the fuel supply feeding the ignition flame in commercial cooking equipment. It meters a controlled gas flow that helps maintain a steady pilot flame, which is necessary for dependable burner ignition. The compact body, measuring approximately .372" in diameter and .530" in length, is designed for 1/4" pilot assemblies commonly found in fryers, ovens, and similar gas-operated equipment. When the orifice becomes restricted or worn, the pilot flame may weaken or become unstable, leading to delayed ignition or inconsistent burner startup. Replacing the component helps restore proper gas metering to the pilot system, allowing the equipment to return to normal ignition performance and reducing interruptions during operation.
Equipment Compatibility:
Commonly used in fryer and oven pilot systems that require controlled low-pressure gas flow for stable ignition performance. This Pilot Orifice 3206 is compatible with commercial equipment from leading brands such as American Range, Blodgett, Frymaster, Henny Penny, Imperial, Pitco, Lang, and more, where stable pilot flame control is required for reliable operation.
Brand Compatibility:
Replaces multiple part numbers across various commercial kitchen equipment brands, including American Range, Blodgett, Frymaster, Henny Penny, Imperial, Pitco, and Lang. Refer to the “Replaces Parts” section for complete cross-reference details.
Product Specifications:
Manufacturer: Royal Range
SKU: 3206
Product Type: Low-Pressure Gas Pilot Orifice
Application: 1/4" Pilot Systems
Orifice Size: .016" (#78 Hole)
Dimensions: .372" Diameter x .530" Length
Gas Type: LP (Low Pressure)
Key Features:
- Regulates low-pressure gas flow to support steady pilot flame operation
- Helps maintain ignition consistency in commercial cooking equipment
- Precision-machined orifice supports controlled gas delivery to the pilot system
- Compact design fits standard 1/4" pilot assemblies used in gas equipment
- Assists in restoring ignition performance when the pilot flame becomes unstable
- Suitable for continuous-use commercial fryer and oven applications
Installation feedback often mentions improved ignition performance after replacement.
BLODGETT:
GARLAND:
HENNY PENNY:
IMPERIAL:
LANG:
PITCO:
SOUTHBEND:
STAR MFG:
