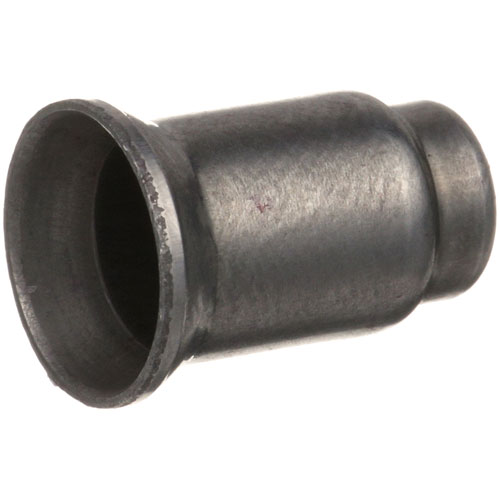

Frymaster 8102400 LP Pilot Orifice #16

SKU: 8102400 1-8102400 Brand:
Frymaster
Availability:
In Stock
(1)
$9.14
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot Orifice, For 1/4" Pilots,
  • .016" Or #78 Hole,
  • .372" Dia X .530" Long
  • American Range Fryer
  • Blodgett Oven
  • Imperial Fryer Series If, Ihr, Ir

Description

The Frymaster 8102400 LP Pilot Orifice #16 works by controlling the amount of liquid propane entering the valve burner assembly to have a steady, standing flame. It is a component that uses a certain-sized internal opening to meter the gas pressure to ensure that the ignition system gets the precise volume of air required to burn. This brass fitting is installed by the technicians directly into the first fuel line connection that is placed below the main tanks. This is used in a flammable propane configuration, and that does not necessitate complicated changes to the existing gas manifold to be used.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.5 in
  • Height: 0.5 in
  • Width: 0.25 in

AMERICAN RANGE:

11107 A11109

BLODGETT:

20193

FRYMASTER:

2172 810-2400

GARLAND:

1093316

HENNY PENNY:

32407

IMPERIAL:

1059

LANG:

2A-80401-09 80401-09

PITCO:

P6071665 PTP6071665

ROYAL RANGE:

3206

SOUTHBEND:

1054111

STAR MFG:

2A-80401-09

Step1: Shut off gas supply and allow the fryer to cool completely.

Step2: Disconnect the pilot tubing from the pilot burner assembly using a proper tool.

Step3: Remove the old orifice and insert the new orifice into the fitting.

Step4: Hand-tighten the pilot line, then secure firmly with a tool.

Step5: Turn on gas and perform a leak test using soapy water.

Step6: Relight the pilot and verify a steady flame.

  • What maintenance is required for the Frymaster 8102400 Pilot Orifice?

    Clean the pilot orifice regularly to prevent clogging from grease and debris. Inspect gas flow and alignment to ensure consistent ignition performance. Use proper tools and shut off gas supply before servicing for safety.

  • What are common issues with the Frymaster 8102400 Pilot Orifice?

    • Clogging causing weak pilot flame.
    • Inconsistent ignition or delayed startup.
    • Gas flow restriction or uneven flame.
    • Orifice wear leading to poor performance.
    • Blocked gas passage reducing heating output.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Precise Flame
    Dyche —

    Delivers precise gas flow to the pilot, ensuring steady ignition and consistent flame.
