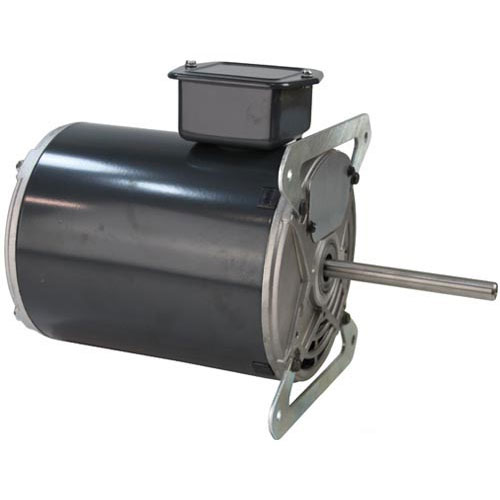

Southbend 1175567 Oven Blower Motor W/ 2 Flats 7.2/4.5AMP 1PH CW

SKU: 1175567 1-1175567 Brand:
Southbend
Availability:
In Stock
(0)
$589.30 Price reduced from $763.94
Save $174.64
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend 1175567 Oven Blower Motor is the part necessary to improve the circulation of air across cavities and provide consistent heat. This runs at 115V with dual speed capability to efficiently transform electrical to mechanical energy to turn the fan to blow hot air across the component. Some advantages that can be associated with this part include better cooking uniformity, shorter cooking cycles, as well as energy conservation, which is essential for keeping up high levels of productivity within a rather chaotic environment of a working kitchen.

Dimensions:

  • Weight: 23 lbs
  • Length: 10.4 in
  • Height: 7 in
  • Width: 8.15 in

SOUTHBEND:

1175571 1177452 1188523 1194780 OS MAKE LIST 4440300 4440367 SOU1175567 SOU1175571 SOU1177452 SOU1188523 SOU4440367

Step1: Disconnect power, turn off breaker, apply lockout/tagout, let oven cool completely.

Step2: Remove rear panel, note wiring and blower orientation carefully.

Step3: Disconnect electrical connections and unbolt old motor assembly.

Step4: Install new motor, align shaft flats, secure mounting bolts.

Step5: Reconnect wiring for CW rotation, ensure tight terminals.

Step6: Reassemble panel, restore power, test airflow and operation safely, monitor for unusual noise or vibration.

  • What maintenance is required for the Southbend 1175567 Blower Motor?

    Regularly inspect the blower motor for dust buildup and clean the fan blades and housing to ensure proper airflow. Check electrical connections for tightness and signs of wear. Lubricate bearings if applicable and listen for unusual noises. Always disconnect power before servicing for safety.

  • What are common issues with the Southbend 1175567 Blower Motor?

    • Motor overheating during extended operation.
    • Unusual noise or vibration from worn bearings.
    • Failure to start due to electrical faults.
    • Reduced airflow from damaged or misaligned fan blades.
    • Intermittent operation caused by loose wiring.
