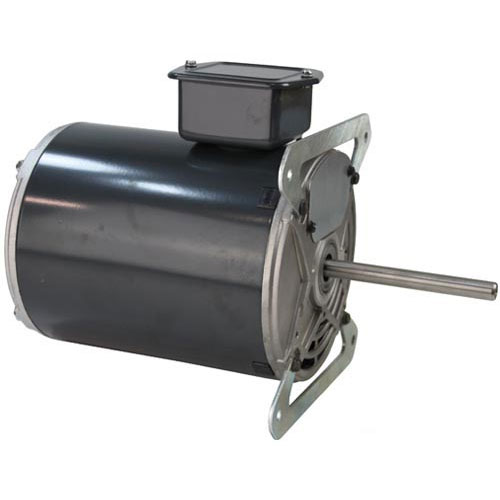

Southbend 1188523 Oven Motor W/ 2 Flats 1PH 7.2/4.5AMP CW

SKU: 1188523 1-1188523 Brand:
Southbend
Availability:
In Stock
(0)
$589.30 Price reduced from $763.94
Save $174.64
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend 1188523 Convection Oven Motor is a heavy-duty, two-speed blower motor. It is 115V power with 0.5/0.25 HP and 7.2/4.5 amps that provide proper air circulation and proper cooking. It has a 1/2” x 4-1/2” shaft with two flats for easy installation and turns in a clockwise direction from the rear. It has dual speed control for the flexibility of cooking applications, improving heat convection and shortening cooking time. This component has the function of keeping constant temperatures, which without a doubt enhances the quality of food as well as of economical and strict working procedures in the professional kitchen.

Dimensions:

  • Weight: 23 lbs
  • Length: 10.4 in
  • Height: 7 in
  • Width: 8.15 in

SOUTHBEND:

1175567 1175571 1177452 1194780 OS MAKE LIST 4440300 4440367 SOU1175567 SOU1175571 SOU1177452 SOU1188523 SOU4440367

Step1: Disconnect power supply and check oven is cool to prevent electrical or burn hazards.

Step2: Remove rear panel and note wiring and mounting orientation of old motor.

Step3: Detach electrical connectors and unbolt motor assembly carefully.

Step4: Install new motor, aligning shaft and mounting brackets, secure firmly.

Step5: Reconnect wiring, ensure correct clockwise rotation, replace panel, restore power and test operation.

Step6: Wear insulated gloves and ensure lockout/tagout is applied for safety.

  • What maintenance is required for the Southbend 1188523 Motor?

    Regularly inspect the motor for dust buildup and clean ventilation openings to prevent overheating. Check electrical connections for tightness and wear. Lubricate moving parts if applicable and ensure proper alignment. Always disconnect power before servicing to ensure safety.

  • What are common issues with the Southbend 1188523 Motor?

    • Motor overheating during operation.
    • Unusual noise or vibration.
    • Failure to start or inconsistent running.
    • Reduced airflow or weak performance.
