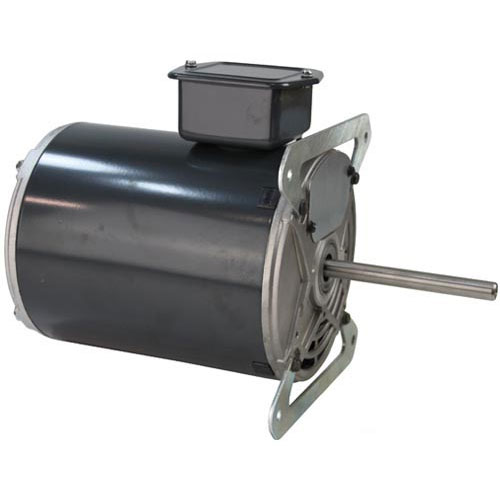

Southbend 1177452 Oven Motor W/ 2 Flats 1PH 7.2/4.5AMP CW

SKU: 1177452 1-1177452 Brand:
Southbend
Availability:
In Stock
(0)
$589.30 Price reduced from $763.94
Save $174.64
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend 1177452 Convection Oven Motor is a durable and powerful part intended for usage in equipment of the commercial kitchen. It has a voltage of 115V with power of 0.5- 0.25 HP, has two speeds and clockwise action, therefore suitable for most cooking uses. This 7.2/4.5 AMP rating performance, and the build makes it more long-lasting. Among the advantages obtained are better ventilation and high thermal stability, which plays an essential role in baking and roasting processes. This is compatible with several Southbend oven series, making it easy to replace and maintain in the most demanding commercial kitchens.

Dimensions:

  • Weight: 23 lbs
  • Length: 10.4 in
  • Height: 7 in
  • Width: 8.15 in

SOUTHBEND:

1175567 1175571 1188523 1194780 OS MAKE LIST 4440300 4440367 SOU1175567 SOU1175571 SOU1177452 SOU1188523 SOU4440367

Step1: Turn off oven power and apply lockout/tagout to check accidental startup.

Step2: Allow oven to cool completely before servicing.

Step3: Remove rear access panel and document wiring connections.

Step4: Disconnect electrical leads and unbolt the existing motor assembly.

Step5: Install new motor, align shaft flats, and secure mounting bolts.

Step6: Reconnect wiring ensuring correct clockwise rotation.

Step7: Replace panel, restore power, and test for smooth, quiet operation.

  • What maintenance is required for the Southbend 1177452 Motor?

    Regularly inspect the motor for dust buildup and clean it to prevent overheating. Check electrical connections for tightness and wear. Lubricate moving components if applicable. Ensure power is disconnected before servicing to avoid electrical hazards.

  • What are common issues with the Southbend 1177452 Motor?

    • Motor failing to start or running intermittently.
    • Unusual noises indicating worn bearings or internal damage.
    • Overheating during operation.
    • Reduced airflow or inconsistent fan speed.
    • Electrical faults such as short circuits or blown windings.
