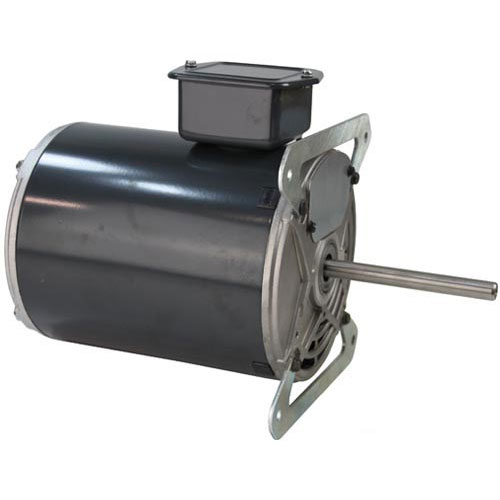

Southbend 1175571 Motor W/2-Flats CW 1-Pole 7.2/4.5 AMP

SKU: 1175571 1-1175571 Brand:
Southbend
Availability:
In Stock
(0)
$589.30 Price reduced from $763.94
Save $174.64
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
  • [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
  • Frame 56Z, 2 Speed.
  • [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
  • White Common
  • Black Power To Fan Switch - Hi
  • Red Power To Fan Switch - Lo
  • Blue/Purple Or Brown/Brown To Centrifugal Switch.
  • If Oven Does Not Have Centrifugal Switch Then
  • Wire Together W/ Wire Nut.
  • If Only Using For One Speed, Then Wire Nut Red Wire.
  • Southbend
  • Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs

Description

The Southbend 1175571 Motor 2-Flats CW 1-Pole, 7.2/4.5 AMP is a replacement unit that is installed in commercial broilers to power the conveyor or blower system in the broiler. It works in a clockwise manner and has a two-flat shaft design to ensure the drive components are coupled securely to provide the torque required to maintain a constant movement. The motor is installed in the mechanical assembly of the broiler and is connected to the control circuitry and mechanical connection to assist in the correct operation.

Dimensions:

  • Weight: 23 lbs
  • Length: 10.4 in
  • Height: 7 in
  • Width: 8.15 in

SOUTHBEND:

1175567 1177452 1188523 1194780 OS MAKE LIST 4440300 4440367 SOU1175567 SOU1175571 SOU1177452 SOU1188523 SOU4440367
